What is Vacuum Suction Roll Sealing Strips ?

Vacuum Suction Roll Sealing Strips

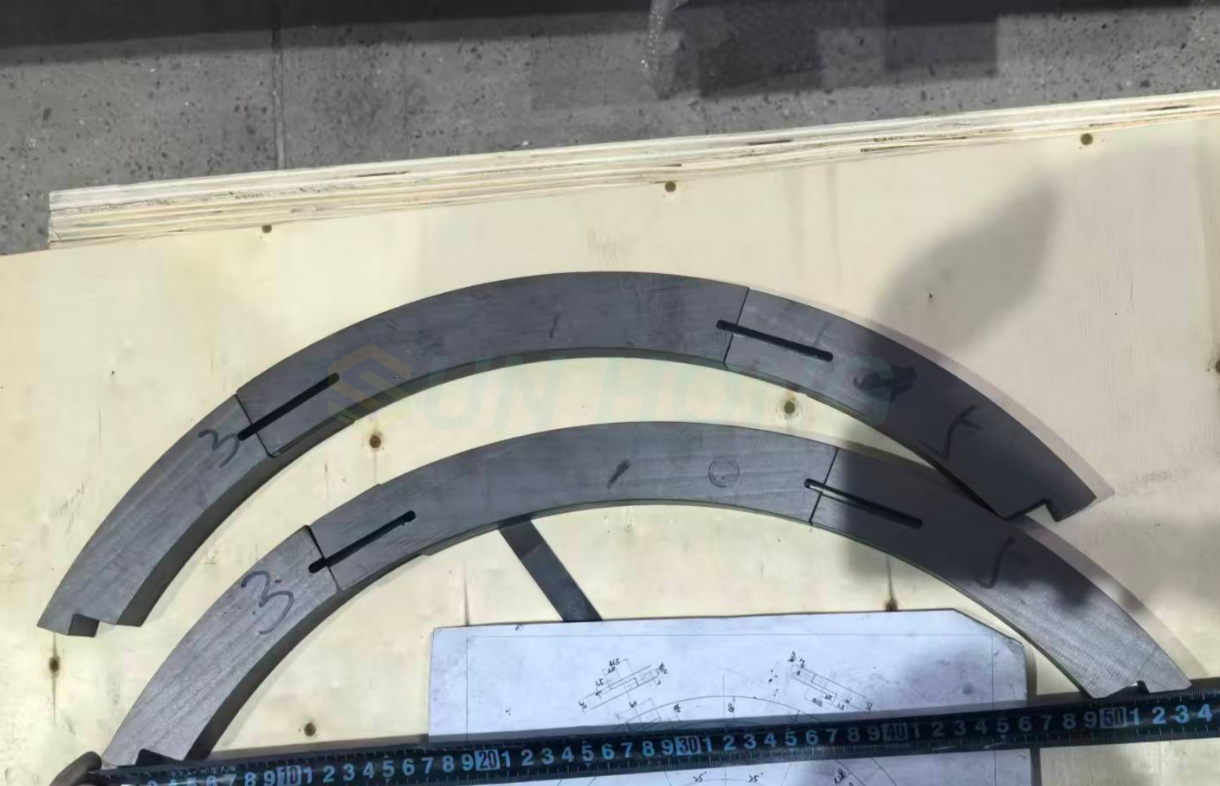

Vacuum suction roll graphite sealing strip is a key sealing component specially designed for paper making machinery vacuum rolls (such as vacuum press roll, vacuum couch roll, etc), made of graphite or graphite composite materials, resistant to high temperature and high pressure (120℃/10MPa), ensuring vacuum dehydration efficiency and extending roll life.

Technical Specifications of Graphite Sealing Strips

The core parameters of the vacuum suction roll graphite sealing strip are designed based on industrial standards and need to be matched with the working conditions of the paper machine:

Physical performance:

Temperature resistance range: -20 ° C to 120 ° C, can withstand a high temperature of 150 ° C in the short term.

Pressure bearing capacity: up to 10MPa, suitable for high-speed dehydration pressure.

Applicable speed: 100-1800 meters per minute, meeting the speed requirements of different paper machines.

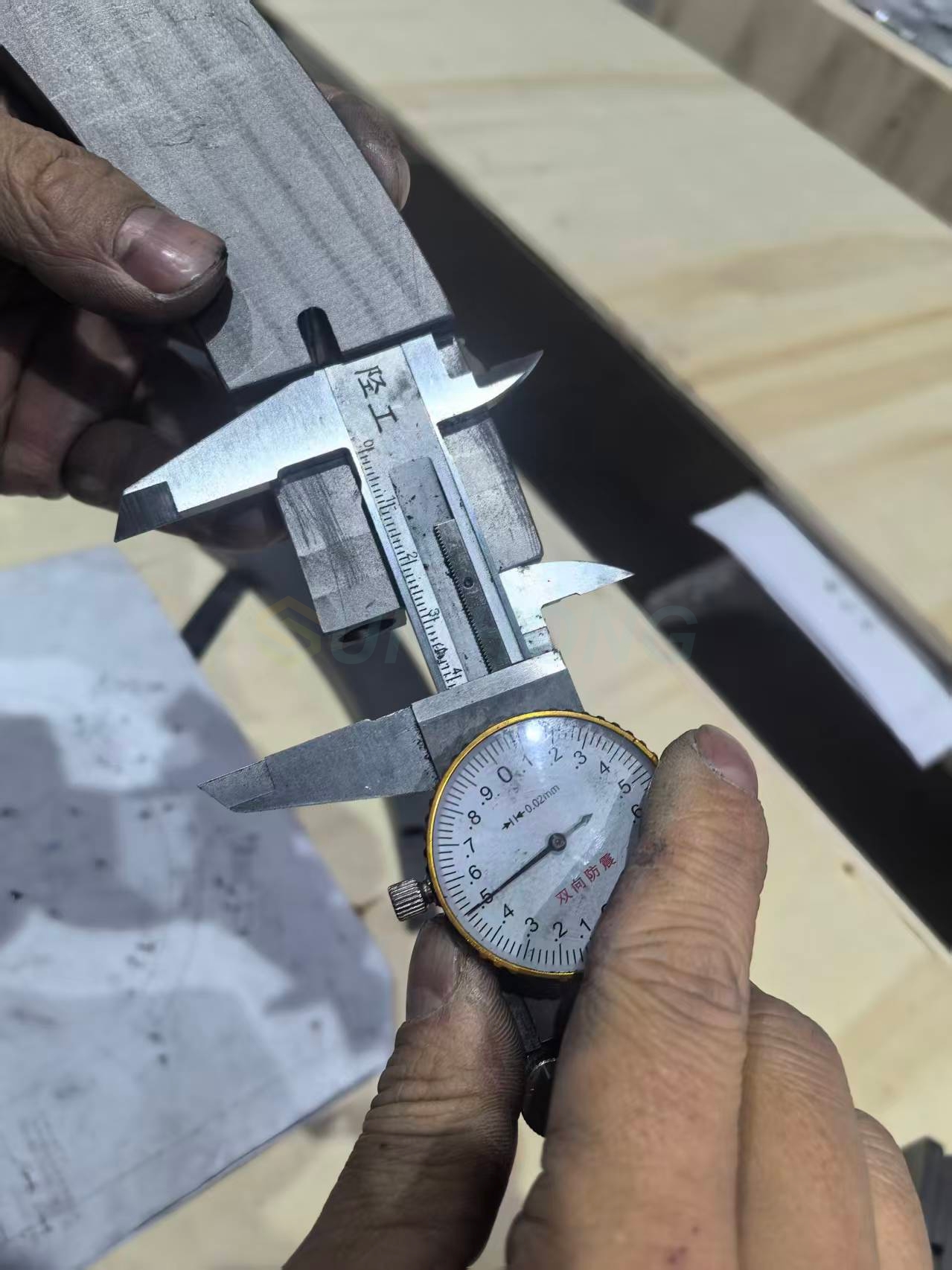

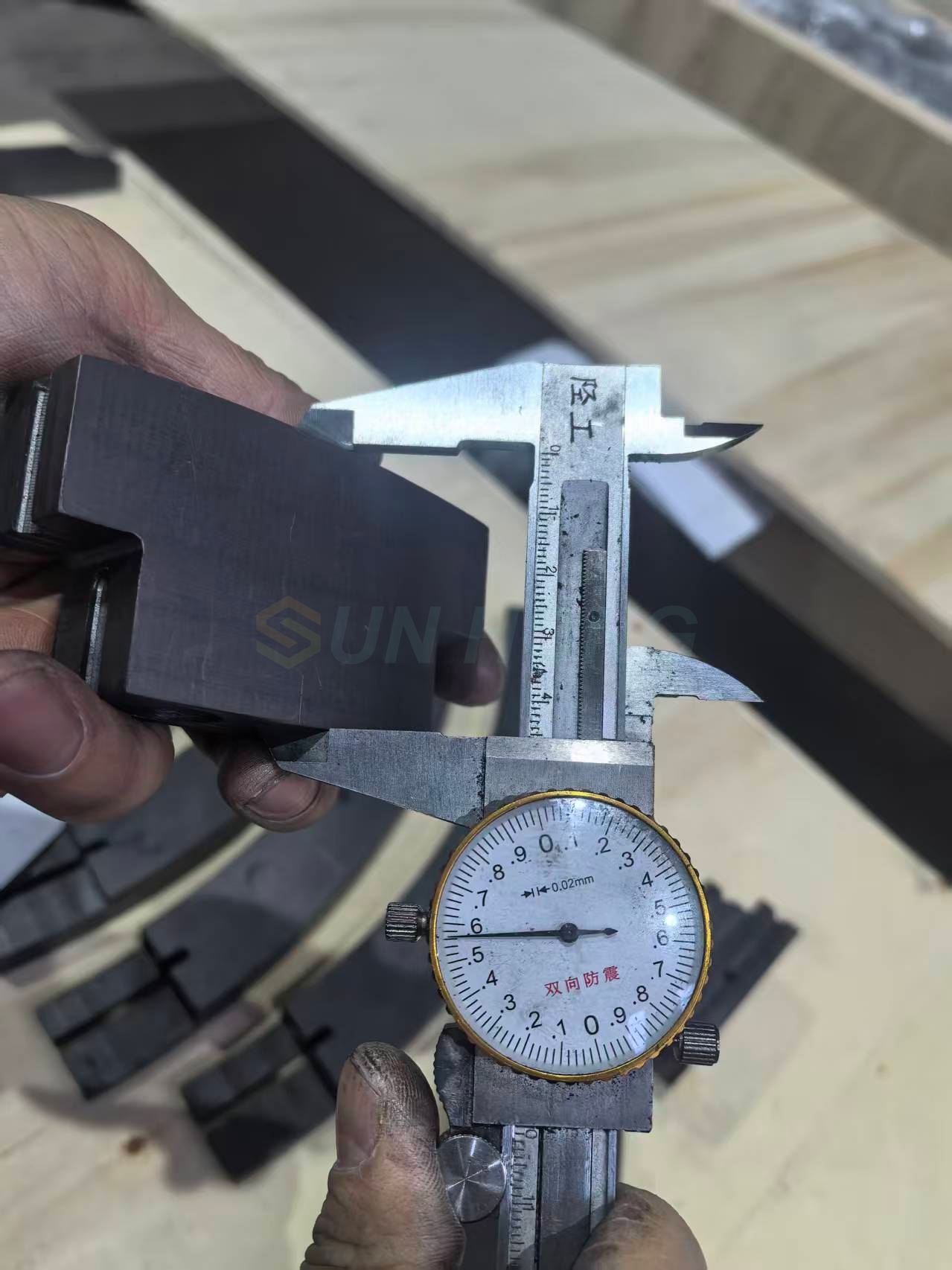

Size specifications:

Length: Standard full length of 11.45 meters (without splicing), supports customization according to drawings.

Material: Pure graphite or polymer+graphite composite, density ≥ 1.6g/cm3.

Compatibility: Suitable for vacuum rollers, suction rollers, and other rollers with a diameter of 4-8mm.

Application Principle

Graphite sealing strips improve papermaking efficiency through the following mechanisms:

1. Sealed dehydration: Fill the gap between the through holes of the roll shell, maintain negative pressure in the vacuum chamber (≤ 10 ^ -3Pa), and accelerate pulp dehydration.

2. Wear resistant protection: The graphite layered structure reduces the friction coefficient (0.1-0.2), reduces roller wear, and prolongs the service life by 2-3 times compared to polyethylene materials.

3. Thermal stability: Low thermal expansion coefficient (<1x10 ^ -6/℃), avoiding delamination or vacuum leakage caused by high-speed heating.
