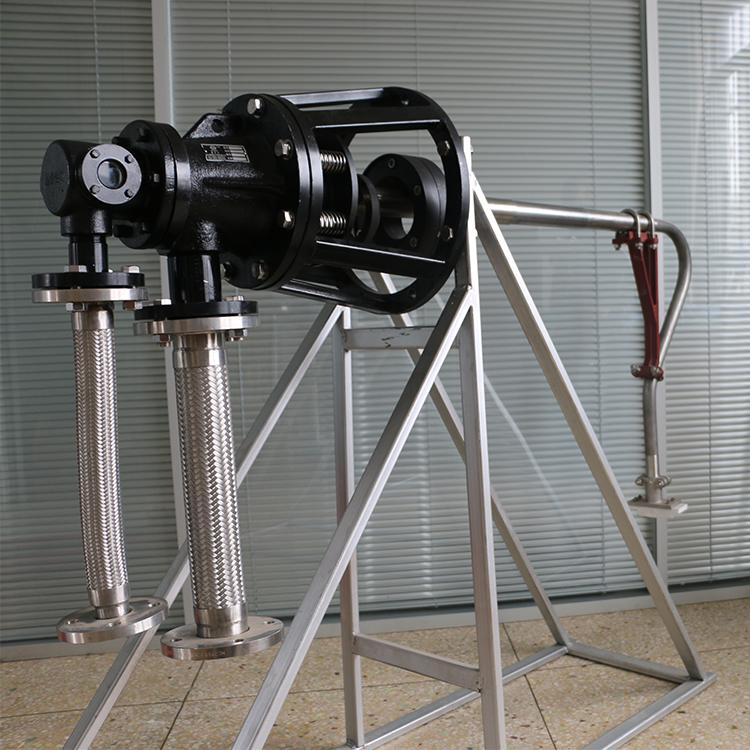

Steam Rotary Joint Structure and Application in Paper Machine

What is Steam Rotary Joint ?

The steam rotary joint is necessary to transport fluid media (such as steam) from a fixed pipeline to a continuously rotating component. This transmission requirement from static to dynamic has led to a dependence on a special type of sealed connector. It is not simply connecting two pipelines, its core function is to maintain reliable sealing and continuous guidance of fluid media between interfaces of relative motion. This component is usually named a rotary joint, and its working scenario is directly related to the functional integrity and operational safety of the device.

Structure of Steam Rotary Joint

The core inside the rotary joint is the seal, usually consisting of a sealing ring that rotates with the shaft and a stationary sealing surface. The two are tightly adhered under the pre tension of spring or medium pressure, forming a main sealing barrier. The presence of medium pressure not only does not damage the seal, but also converts it into additional compressive force, making the sealing surface adhere tighter. This is a "self tightening" sealing principle.

On this basis of sealing, the rotary joint structure further differentiates. The bearing components bear all radial and axial mechanical loads, ensuring precise positioning and smooth operation of the rotating parts, and preventing abnormal wear on the sealing surface. The outer shell and rotating shaft form a fluid channel, and the internal flow channel design aims to balance flow velocity, reduce pressure loss, and minimize direct flushing of the sealing area by the medium. Auxiliary structures, such as support rings and anti rotation pins, are used to secure internal components and prevent unexpected rotation or displacement, ensuring that they perform their respective duties.

Steam Rotary Joint Applied on Drying Cylinder

A typical application of steam rotary joints in the paper, food, or chemical industries is dryer cylinders. This is a large low-speed rotating steel cylinder that requires steam to enter its interior to heat the cylinder wall and evaporate moisture from the material. The steam rotary joint is installed at the shaft head of the dryer cylinder and serves as a high standard dynamic channel for steam to enter and condensate to be discharged.

Here, the steam rotary joint needs to withstand stable steam pressure and temperature for a long time. Its performance directly determines the drying efficiency and energy consumption: if the seal fails and leaks, it will lead to steam loss and increased energy consumption; If the condensed water is not discharged smoothly and accumulates in the cylinder, it will reduce the heat conduction efficiency and affect the uniformity of drying. For such applications, a siphon device is often integrated inside the joint, which uses the principle of pressure difference to continuously discharge condensed water and ensure efficient heat transfer on the heating surface.
