Spray Nozzle Maintenance Helps Improve Papermaking Efficiency

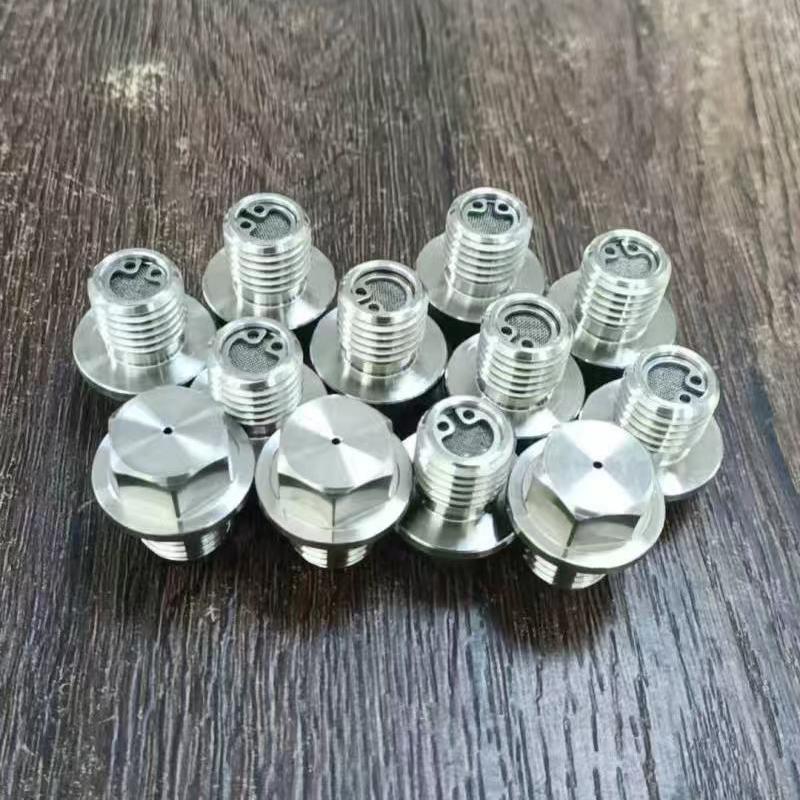

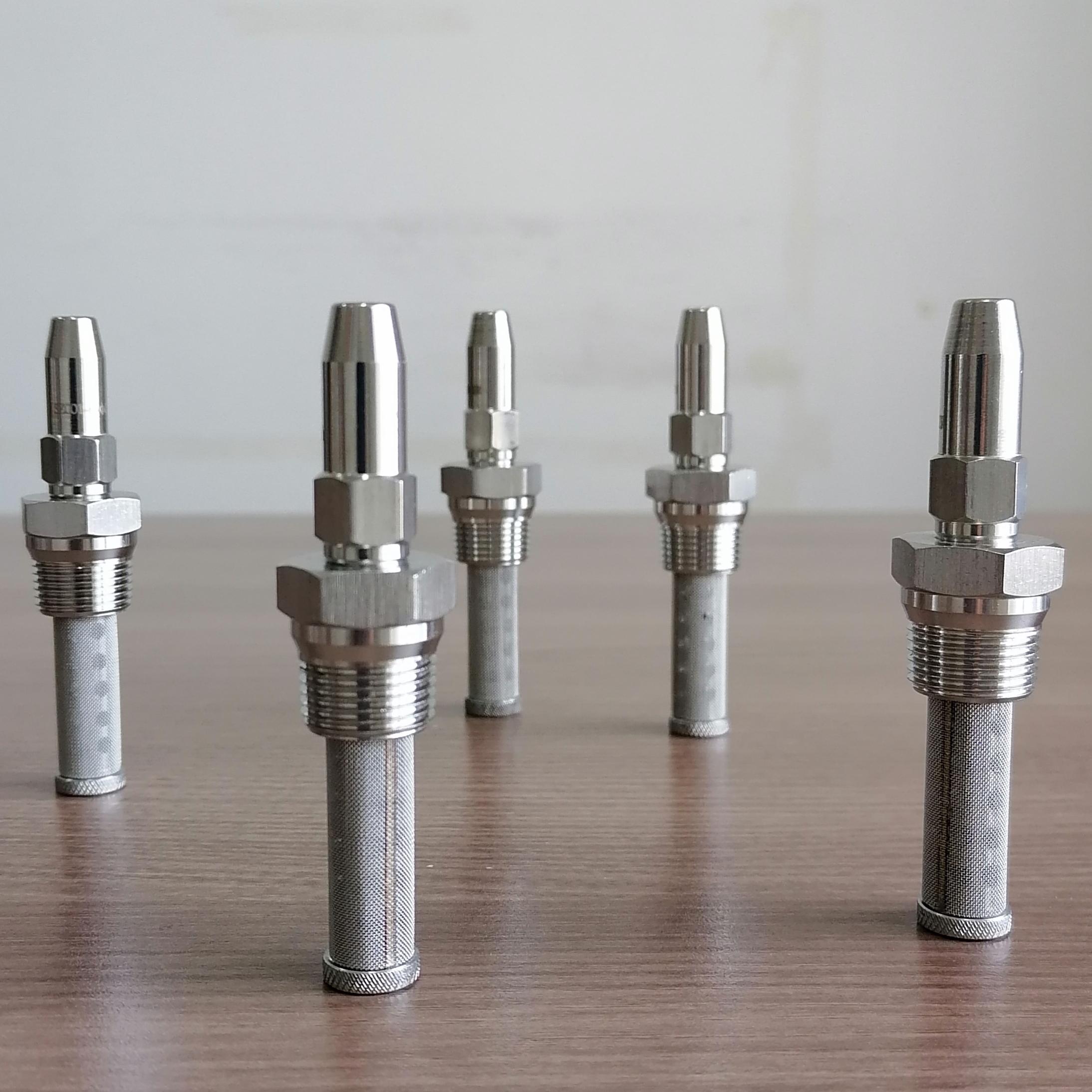

Spray nozzles are an important part of the paper machine, widely used in the papermaking process, such as paper machine clothing cleaning, chemical defoaming, edge cutting, coating, etc.

Although minor wear or damage on the spray nozzle is so small that it doesn’t seem like a problem. But the issues actually affect the uniformity of the spraying effect and may even lead to the waste of thousands of gallons of water or chemicals each year.

Especially on modern high speed paper machines, although the spray nozzles are small, they have a significant impact on paper quality, equipment stability, and operating efficiency.

Therefore, only proper nozzle maintenance can extend its service life, reduce the cost of replacing spray nozzles and downtime caused by improper operation, and improve papermaking quality and efficiency.

Common Spray Nozzle Problems

Wear

Solid particles such as metal impurities, fiber particles, and carbonate scale act like sandpaper as they pass through the metal spray nozzle at high speed, causing continuous friction against the interior of the nozzle and resulting in wear.

At the same time, even relatively clean water can gradually wear down the orifices of the nozzle when sprayed at high pressure over an extended period.

Furthermore, sudden changes in local pressure caused by high speed liquid flow can create tiny bubbles. When these bubbles burst, they impact the surface of the spray nozzle, and over time, this can even cause honeycomb like damage to the inner walls of the nozzle.

Corrosion

In paper machines, the chemical action of the liquids sprayed from the spray nozzle can damage the nozzle materials over time. The use of sizing agents and high temperature steam, in particular, significantly increases nozzle corrosion.

This damages the nozzle orifice and affects spray performance, causing increased nozzle flow and poor spray pattern.

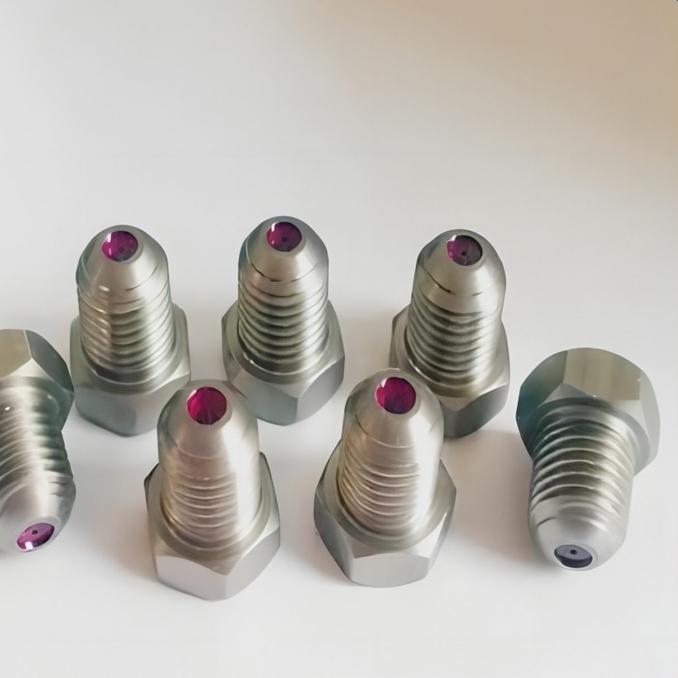

To avoid the negative impact of nozzle corrosion on the papermaking machine, nozzles made of corrosion resistant materials such as ceramic or ruby can be used, and they should be cleaned regularly.

Blockage

Particulate Contamination

This particulate matter comes from a variety of sources, such as raw material contamination, system corrosion, inadequate filtration, or environmental debris. For instance, the liquid you use may contain various additives, which can combine with each other and cause blockages at the spray nozzle. Moreover, the nozzle used in white water systems is more prone to clogging due to the accumulation of fine fibers and fillers in the white water.

In addition, if the filtration system is inadequate, rust particles in the pipes or metal debris from pump wear can also be a significant source of spray nozzle clogging.

Residue Buildup

The type of sprayed fluid is also a key factor in spray nozzle clogging. The viscosity of the fluid directly affects the frequency of nozzle clogging. In the papermaking process, starch, latex, and coating chemicals may flocculate or bind together, forming gel like deposits inside the nozzle.

Biological Fouling

Biofilm primarily originates from the growth of microorganisms in the circulating water system. The warm, humid, and organic rich environment of the paper machine provides ideal living conditions for the growth of biofilms and bacteria, especially for the spray nozzle connected to the white water system and the chemical spray nozzle.

Singles Indicating Spray Nozzle Maintenance

Uneven Pattern

Each spray nozzle produces a specific spray pattern, whether it's a flat fan, a solid cone, or a hollow cone.

Deviations from the expected shape may indicate spray nozzle wear or clogging. For example, a flat fan nozzle should produce a uniform spray, but wear can cause excessive flow at the center and reduced coverage at the edges.

In a spray pattern that was originally fan shaped, prominent, high concentration streaks are a typical sign of particle clogging in the spray nozzle.

Increased Flow Rate

Increased flow rate is another sign of nozzle wear. As the nozzle orifice diameter increases, more liquid flows through, which can lead to the overuse of expensive chemicals or water. A 10% increase in nozzle orifice diameter can result in a 21% increase in flow rate.

Proper Maintenance & Care

Cleaning

Choosing the right materials and tools to clean the nozzle is crucial to avoid damaging it. Use tools that are softer than the nozzle material to prevent scratches and abrasions.

You should use the soft bristled brush for all types of metal spray nozzles to avoid scratches on the nozzle caused by hard bristled or rough brushes.

Moreover, soaking the nozzle in a solution of vinegar and water helps remove debris without causing corrosion. This method is especially suitable for nozzles with small orifices.

Regular Inspection

Regular spray nozzle inspections are crucial for maintaining performance and extending lifespan, helping you identify problems early and avoid downtime for maintenance. Nozzles in critical positions should be inspected weekly or monthly, while those in general positions can be inspected monthly or quarterly.

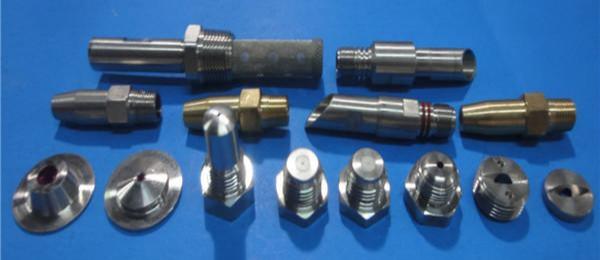

Make a High Quality Choice

While we can extend spray nozzle lifetime and avoid impacts on the papermaking process caused by nozzle wear, corrosion, and clogging through numerous post construction inspections and maintenance, selecting higher quality spray nozzles at the purchasing stage can significantly reduce problems arising from quality and design issues.
