Fan Type Spray Nozzle
(1) Highly efficient full coverage: Evenly and comprehensively sprays wide-area blankets and scrapers.
(2) High impact: Provides higher impact at the same pressure; a low-pressure fan type spray nozzle specifically designed for brushing.
(3) Precise control: Spray angles of 30° and 60° allow for precise flow control, saving water and chemicals and reducing operating costs.
Fan Type Spray Nozzle
The fan type spray nozzle is a specially engineered nozzle designed to produce a flat, fan-shaped spray pattern with uniform distribution. Its precisely designed internal flow channel ensures that the liquid is discharged in a thin, even layer with well-defined edges, providing consistent coverage across the target surface. This makes it particularly suitable for cleaning and spraying applications on paper machines.
Sun Hong offers a wide range of spray angles, including 30° and 60°, allowing users to adjust the coverage width and impact force according to different operating conditions. A narrower spray angle provides stronger impact for high-pressure cleaning, while a wider angle ensures broader coverage for efficient washing.
Application of Fan Type Spray Nozzle on Paper Machine
Fan type spray nozzle is commonly used to clean paper fibers adhering to the wire mesh of paper machines. When the forming fabric is clogged, its pores cannot be cleared, often resulting in a rough paper surface and reduced quality. Using high-pressure fan type spray nozzles for continuous reciprocating cleaning, and comprehensively considering factors such as spatial layout, water pressure, flow rate, distance, and spray angle, can effectively clean the wire surface.
Types of Fan Spray Nozzle

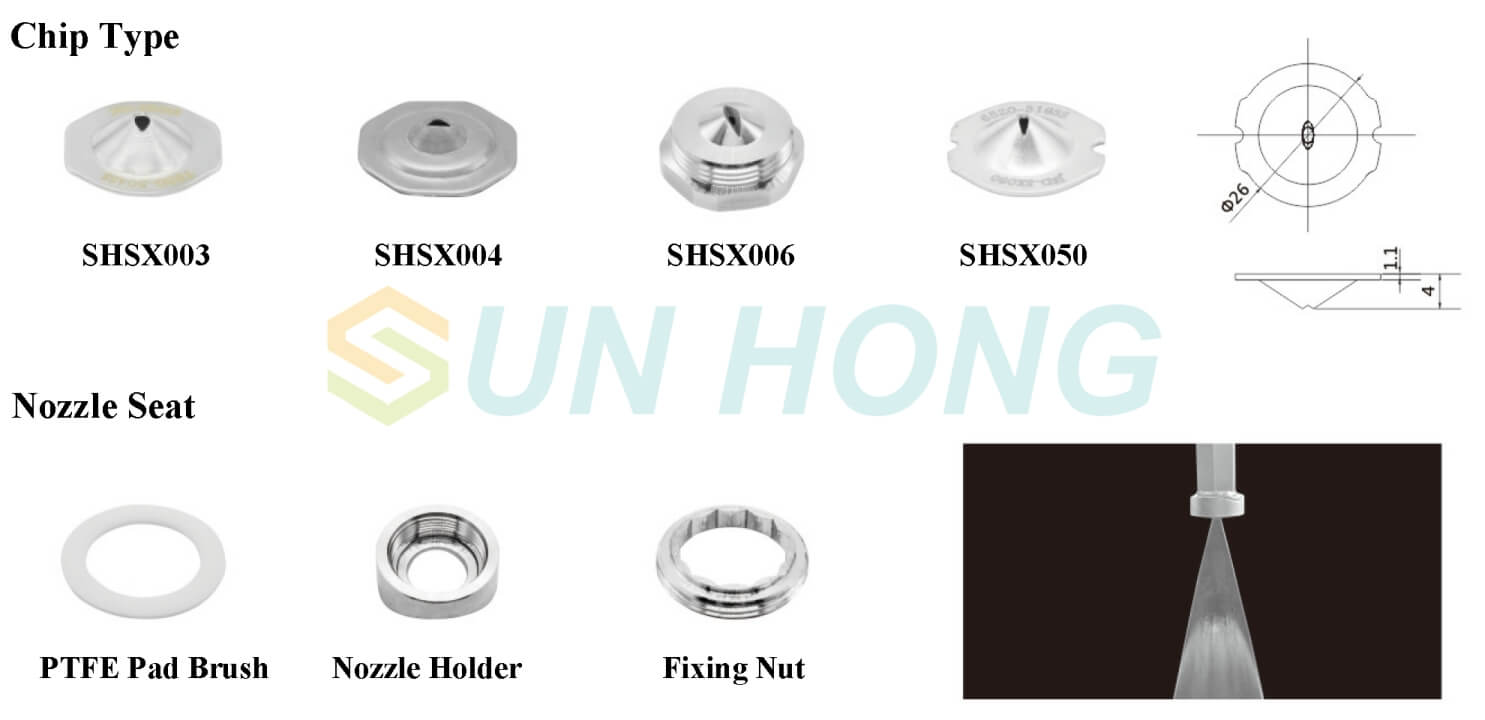

Chip Type Fan Spray Nozzle
This type of spray nozzle has a thin wall and a specially designed disturbing structure, making it compact and space saving, suitable for applications with limited space. It requires a gasket during installation and produces a high impact liquid flow and fan shaped spray. It is widely used for cleaning paper making press felts and sludge dewatering nets.

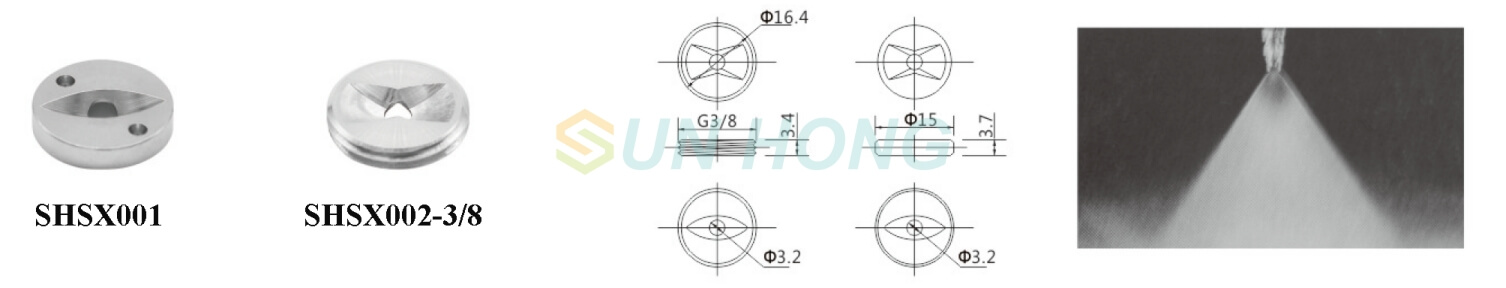

Button Type Fan Spray Nozzle
Sun Hong's button type fan spray nozzle is made of SS303 and SS316 stainless steel, offering excellent wear resistance and corrosion resistance. It can be used for cleaning forming nets and felts. When the spraying height between the spray rod and the fabric or felt is very low, this nozzle is the best choice.

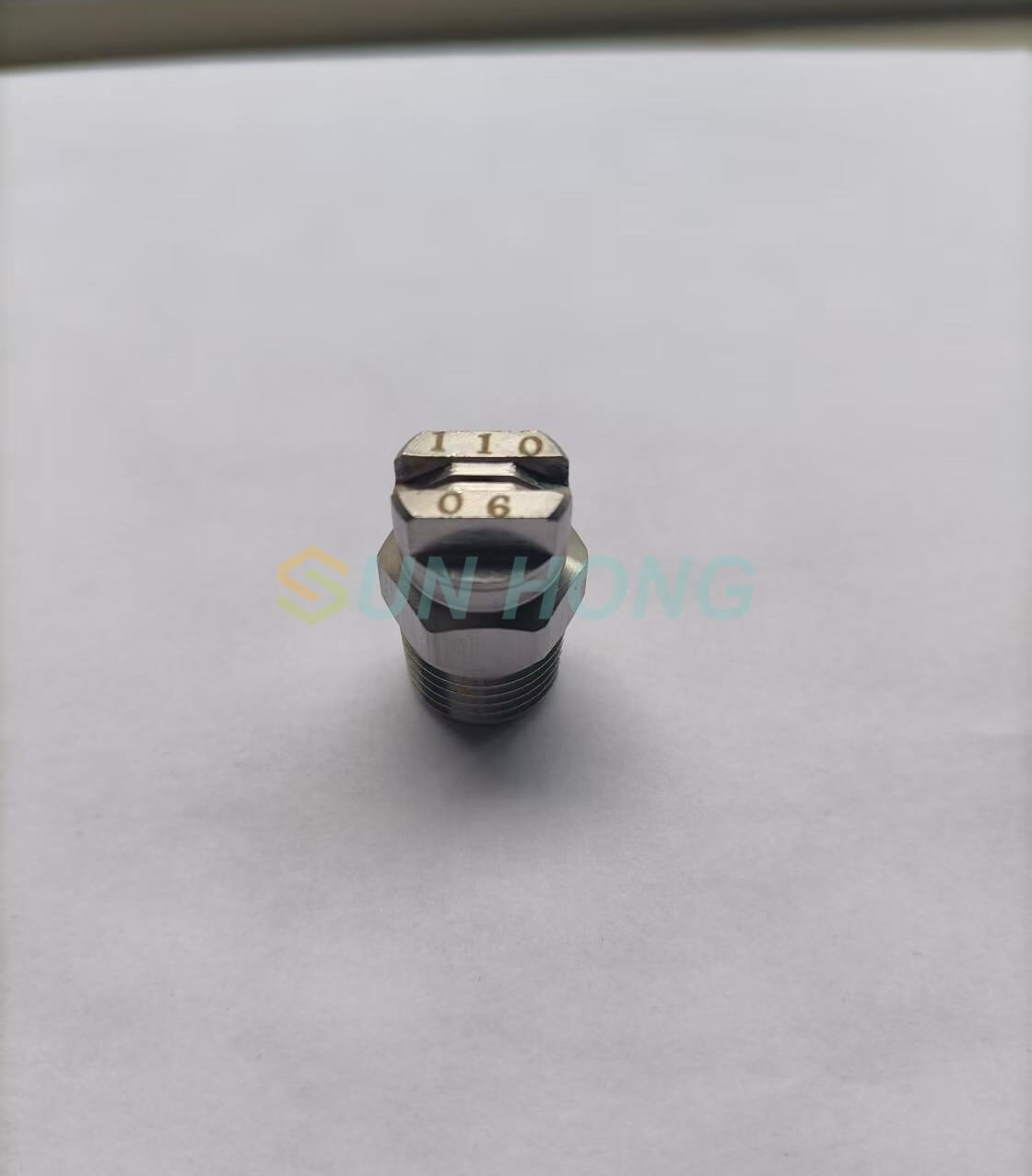

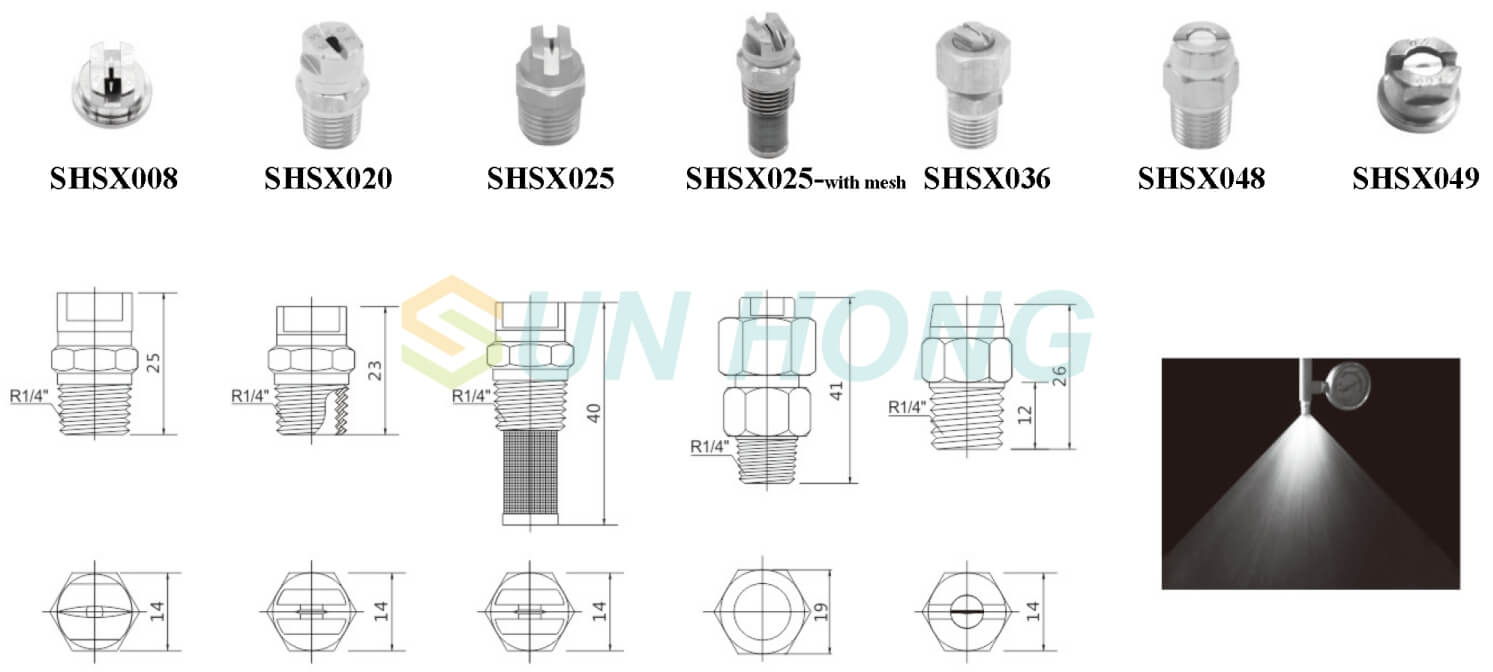

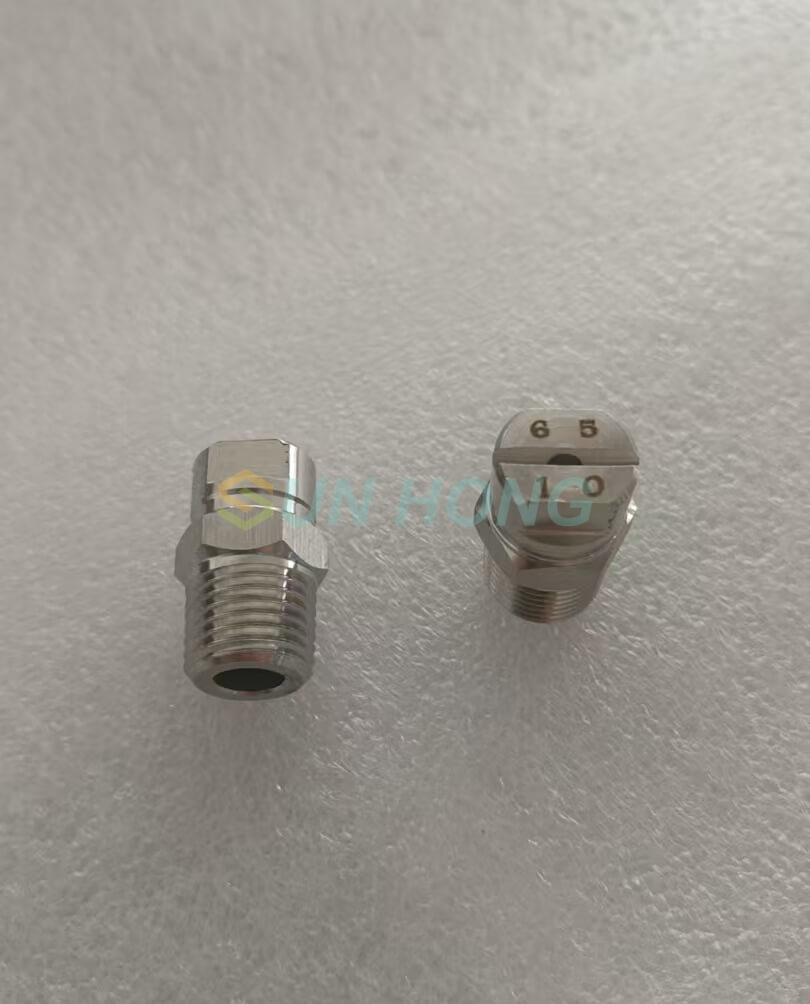

Fan Spray Nozzle
This fan type spray nozzle can produce high impact water jets and uniformly distributed fan shaped sprays, with water jet sizes ranging from small to medium. Besides being used for washing paper machine wire mesh, it can also be used for chemical spraying, fire extinguishing, and cooling and quenching.
