Carrier Rope for Paper Machine

What is Paper Carrier Rope?

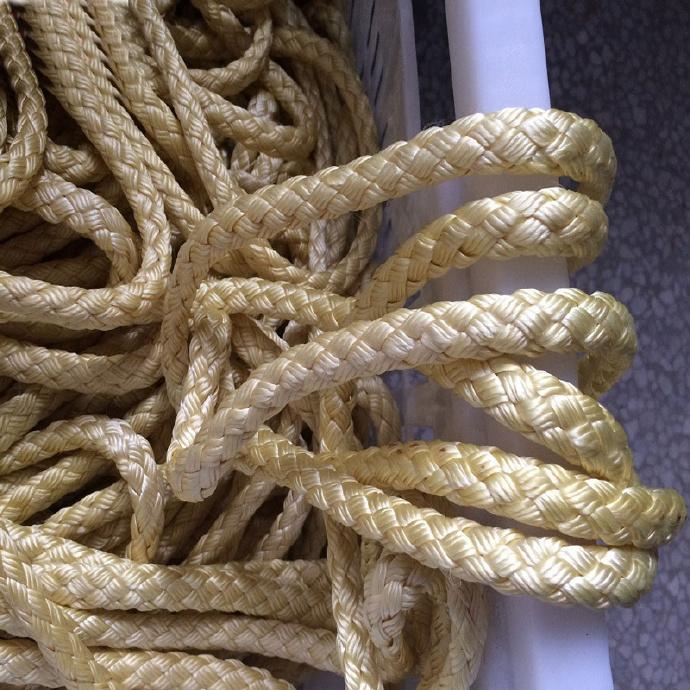

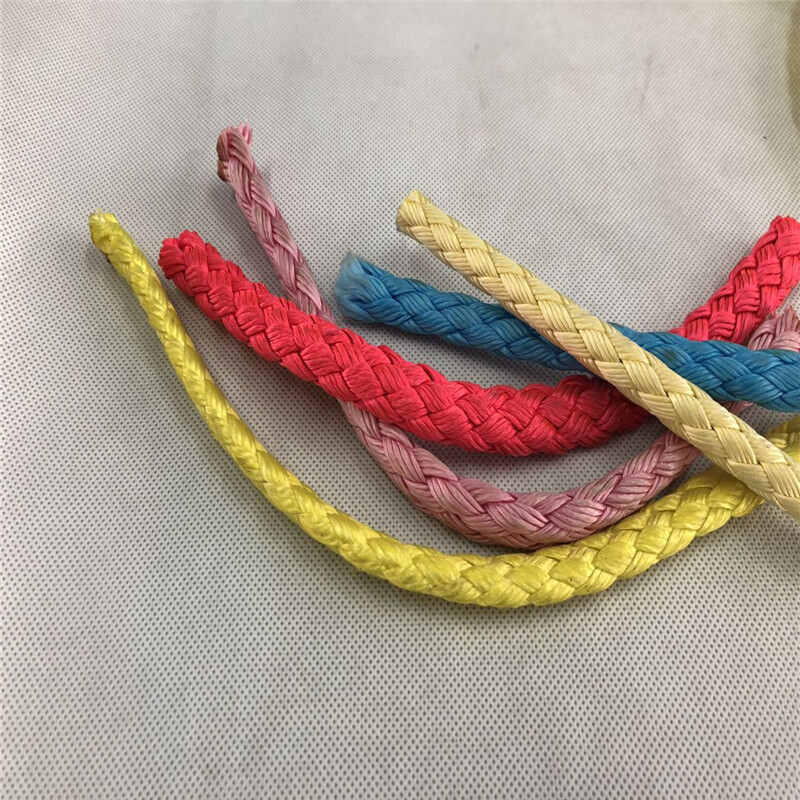

Carrier rope is specially designed for papermaking industry. As an auxiliary equipment on papermaking machine, it is a high strength braided rope used to guide paper, which can effectively avoid paper breakage, wrinkles, misalignment and other problems.

Carrier rope can be systematically divided into double rope carrier rope and triple rope carrier rope. Double rope carrier rope is often used in paper machines with a basis weight of 40-120g/m², while triple rope carrier rope is generally used in paper machines with a basis weight greater than 120g/m².

(If the paper machine speed is 300-800m/min, 12mm-15mm is enough for the paper guide rope strength. If the paper machine speed is above 800m/min, the carrier rope can be thicker.)

The Main Function of Carrier Rope

In paper making production, paper guiding needs to be manually or automatically guided to the next production link. In order to prevent the paper from breaking and deviating, the carrier rope cooperates with the paper guide equipment to stably transport the paper in a high temperature, high humidity and high speed working environment. Therefore, the carrier rope needs to ensure that it does not slip and is close to the transmission track, does not damage the paper and does not shed hair, and has a high temperature and water vapor resistance environment.

Sun Hong's carrier rope is made of nylon and DuPont silk. After special processes such as high temperature treatment and impregnation, it can better protect the fiber, is not easy to flatten, improves paper threading efficiency, and makes joints more convenient.

Features of Carrier Rope

• High strength: Sun Hong's carrier rope is made of high quality fiber with extremely high strength and durability, and can withstand high intensity pressure and frequent friction.

• Flexibility The carrier rope has good flexibility and adapts to various paper making process requirements. It is not easy to break or twist.

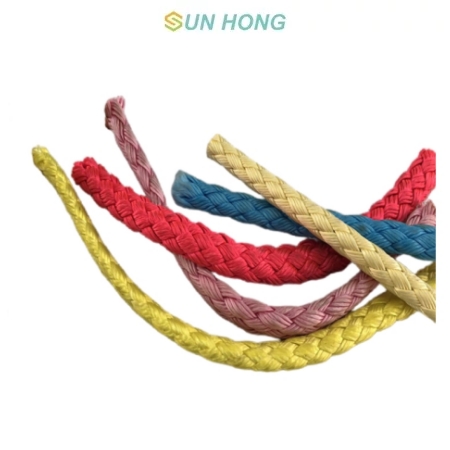

• Accurate size: Sun Hong provides a variety of different specifications of carrier rope to meet the needs of different paper making equipment and bring you the best matching effect.

• Convenient installation: The installation of the carrier rope is simple and convenient. No special tools are required to complete the installation, saving time and cost.

Precautions When Using Carrier Rope

Pay special attention to the elongation of the carrier rope. Generally, the elongation of the carrier rope is 3%-5%. If the elongation is too small, the speed difference between the groups in the drying section may cause the carrier rope to break. On the contrary, the carrier rope will be in a loose state in a certain range and cannot carry paper sheets. When a coreless carrier rope is selected, the two ropes are loose and cannot carry paper sheets. This phenomenon is caused by the excessive elongation of the coreless carrier rope. Replacing it with a cored carrier rope can restore it to normal.

Carrier Rope Technical Parameter
