How Does the Doctor Blade Holder Air Tube Work？

Doctor Blade Holder Air Tube

The doctor blade system is a key device to ensure the cleanliness of the roller surface, uniform coating, and stable paper quality, while the doctor blade air tube (also known as doctor blade airbag, pneumatic pressure airbag) is the core executing component to achieve flexible pressure, precise bonding, and fast clutch of the scraper. It is powered by compressed air and replaces traditional springs, making the pressure of the scraper on the roller surface more uniform, easier to adjust, and gentler to operate, becoming a standard component of modern efficient roller cleaning systems.

Structure and Working Principle of Doctor Blade Holder Air Tube

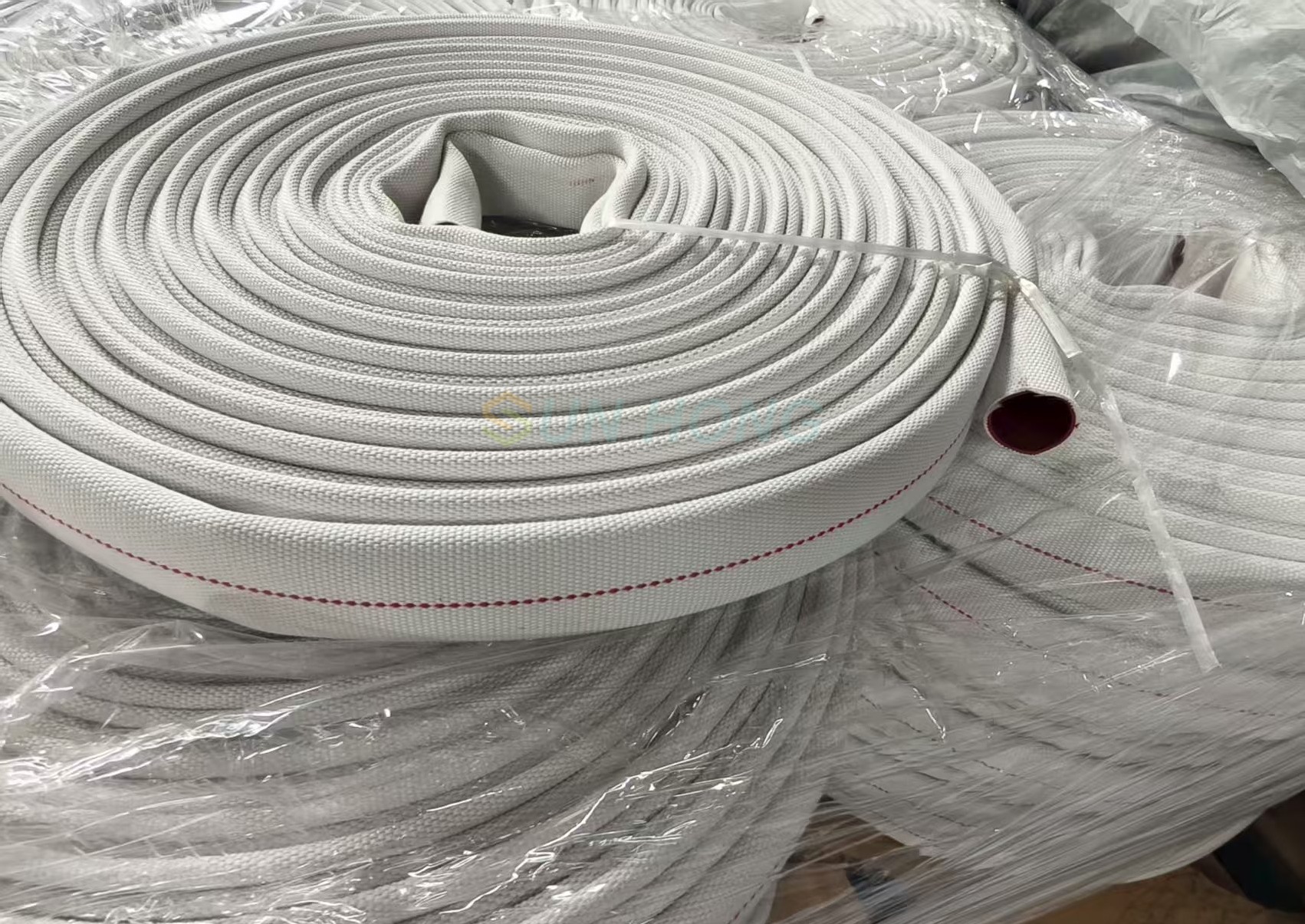

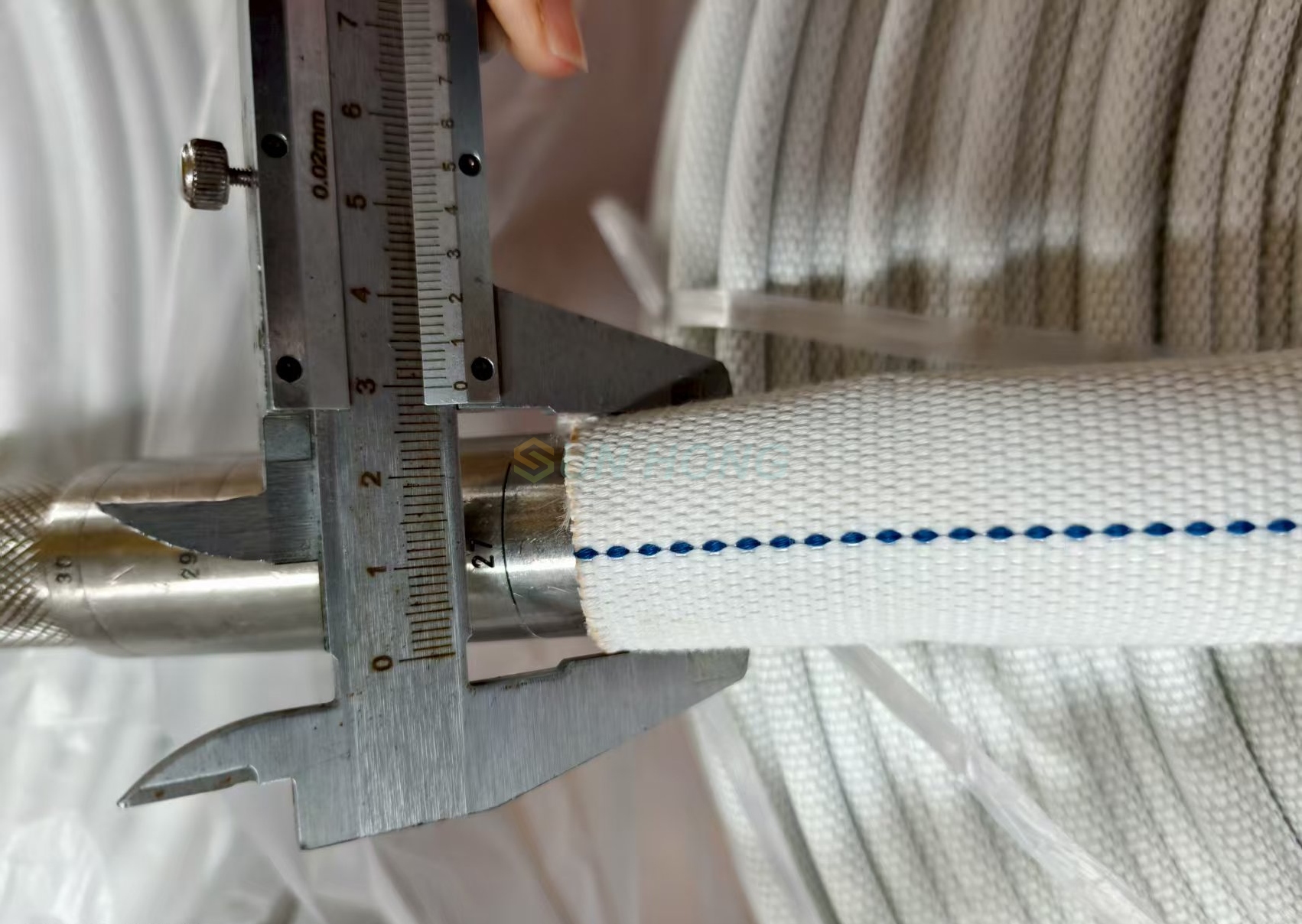

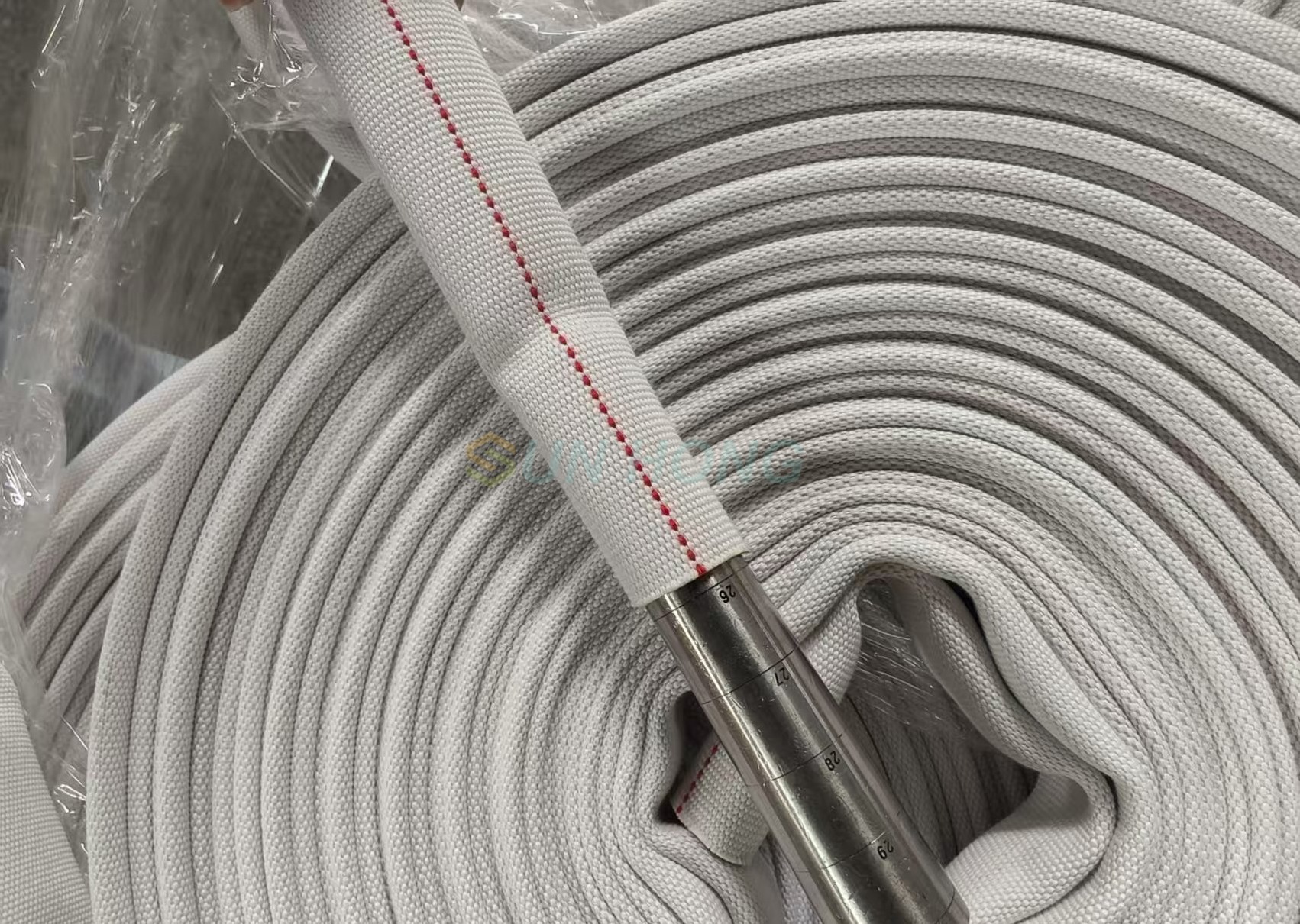

Doctor blade holder air tube is a flexible sealed airbag formed by vulcanization of high temperature resistant, oil resistant, and aging resistant rubber/composite rubber and reinforced cord. It is equipped with an air circuit, pressure regulating valve, and fixed fixture to form a pressurization unit. It is commonly used in single pneumatic tube and double pneumatic tube (pressurized pneumatic tube+depressurized pneumatic tube) structures.

Pressurization: Compressed air is introduced into the pressurized pneumatic tube, and the airbag expands to push the doctor blade, causing the blade to evenly adhere to the roller surface and form a stable linear pressure.

Pressure relief/clutch: Evacuate the doctor blade holder air tube, ventilate the pressure relief pneumatic tube, and the airbag contracts to drive the blade away from the roller surface, achieving rapid disengagement.

Its core features are flexible drive, full range uniform pressure, and shape following fit, which can compensate for roller surface jumping, doctor blade deformation, and installation deviation, and maintain stable contact between the blade and the roller surface throughout the process.

Application of Doctor Blade Pressure Loading Tube

• Paper Industry (most mainstream application)

Dryer cylinder in the dryer section: equipped with creping scraper and cleaning doctor blade, it can stably peel off paper sheets, remove paper scraps and resin on the cylinder surface, and ensure the flatness of the paper surface;

Forming and press section : doctor blade for rolls, press rolls, and vacuum suction rolls to remove fibers and adhesives, preventing blockages between mesh holes and roll surfaces;

Siz press roll and coating roll: measuring and cleaning doctor blade to ensure uniform coating, no streaks, and no bright spots.

• Corrugated Cardboard Production Line

Used for single facer corrugating rolles and pressure roll scrapers to remove starch glue, paper scraps, and dust from the roller surface, maintain stable adhesion, and reduce paper board dirt and paste spots.

• Printing and Coating Equipment

Mesh roller and coating roller doctor blade holder air tube ensure precise ink and coating scraping, improving printing and coating consistency.

• Rubber and Metallurgical Rollers

Various types of rolling and heating roller cleaning doctor blade are used to achieve flexible pressure and protect the coating and mirror accuracy of the roller surface.
