What is a Doctor Blade?

As a high-precision cleaning device on paper machines, doctor blade is mainly used to remove debris and excess water from the surfaces of rollers, dryer cylinders and other parts to prevent blockage and local overheating. Through efficient scraping, the stable operation of the paper machine and the production of high-quality paper are ensured. In addition to playing a key role in papermaking, doctor blade is also widely used in printing, textile and other industries. Choosing a suitable doctor blade can not only optimize the production process but also ensure product quality.

Sun Hong doctor blade series includes: carbon fiber, glass fiber, HDPE, phosphor bronze and other materials. Provide you with professional wear-resistant, high-precision doctor blade.


Excellent Cleaning Effect

Sun Hong adopts advanced cutting edge design to ensure effective removal of surface debris on rollers, dryer cylinders and other equipment.

High Efficiency Energy Saving & Equipment Protection

Optimize production efficiency, improve production quality, reduce friction through precise scraping by the doctor blade, and extend the service life of related equipment.

Precision Design & Customized Services

According to the customer's parameters and drawings to ensure that every detail of the doctor blade meets the required standards and the perfect match of the doctor blade.

Perfect After Sales Service

Provides customers with professional installation guidance and training. It has a complete after-sales service system and responds to customer needs quickly.

Paper Machine Doctor Blade Classification and Advantages

Carbon Fiber Doctor Blade

Carbon fiber doctor blade is one of the best selling scrapers on the market. It is made of carbon fiber and glass fiber, and has the characteristics of light weight, high strength, wear resistance, high temperature resistance and corrosion resistance. It is mainly used in paper machine dryer cylinders, chrome-plated rollers, rubber rollers, stone rollers, etc.

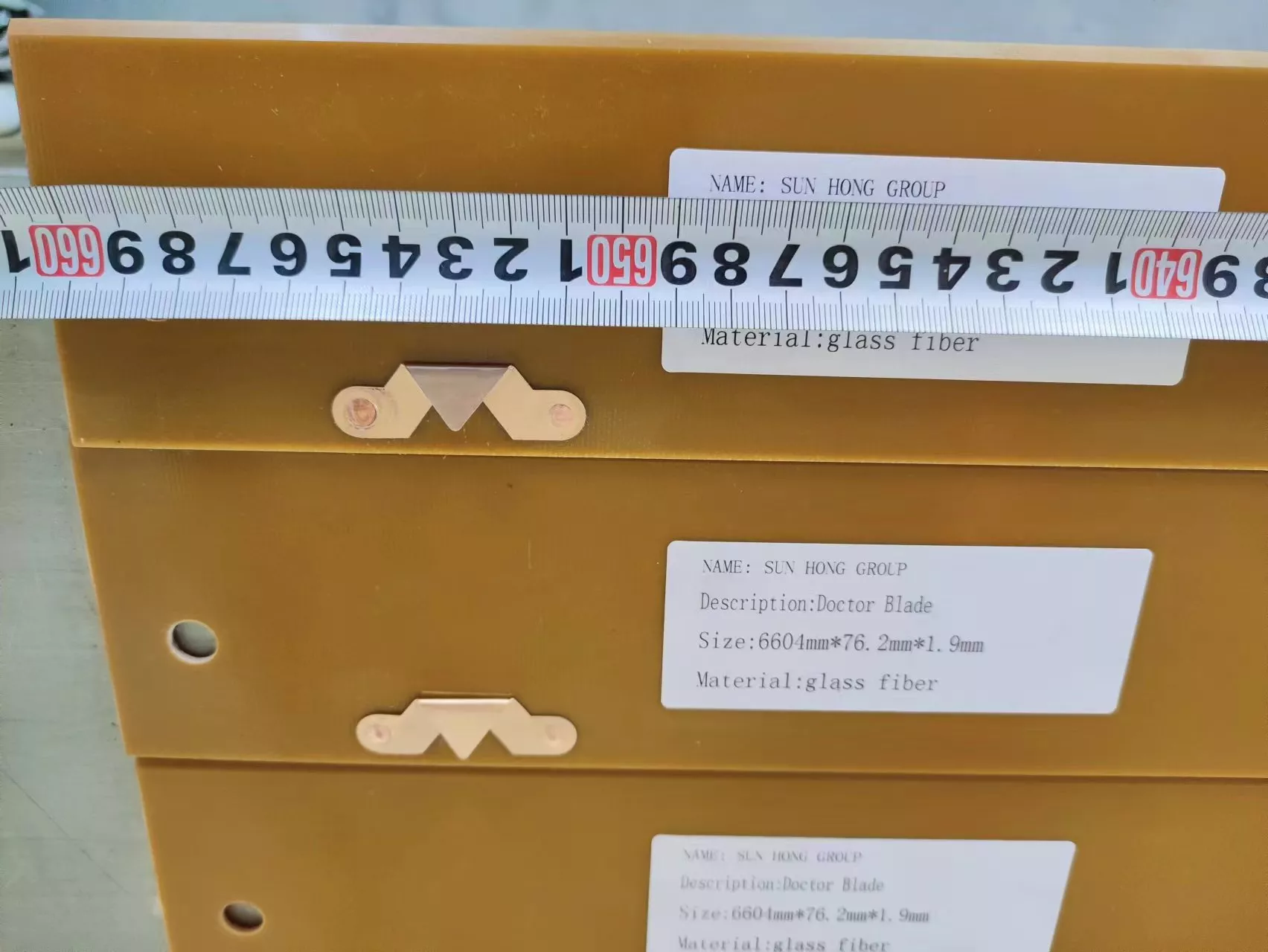

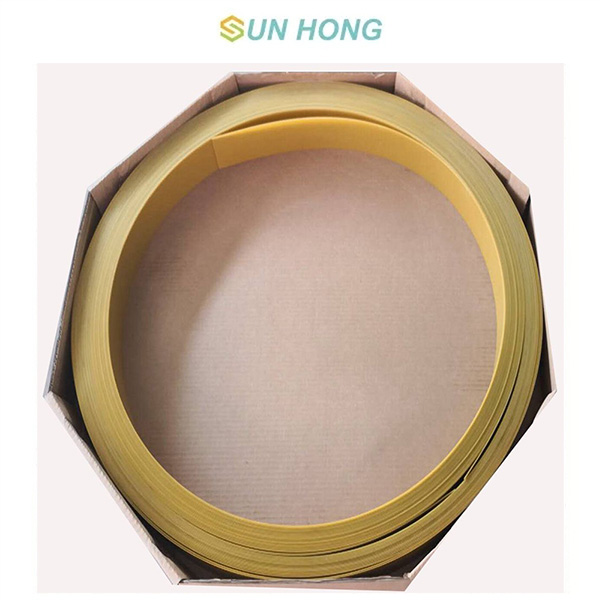

Glass Fiber Doctor Blade

Glass Fiber Doctor Blade is also one of the commonly used doctor blade. It is made of ultra fine fiber and epoxy resin. It has good chemical resistance and wear resistance. It can withstand high temperatures up to 185° and can be used for various rollers from paper machine wire section to curling section.

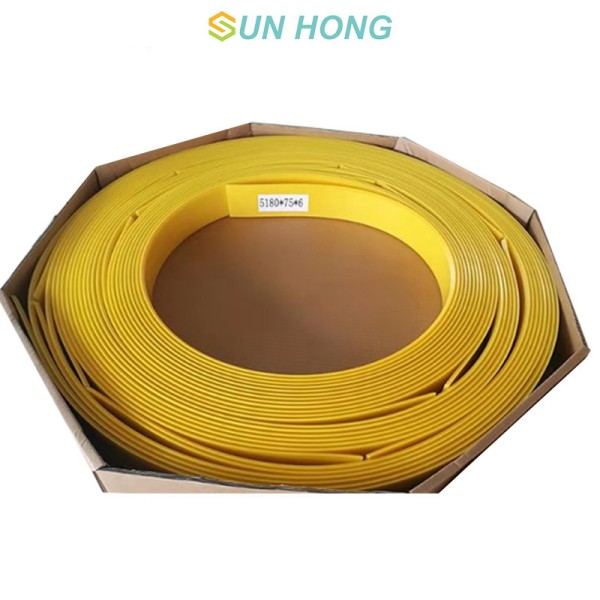

HDPE Doctor Blade

HDPE doctor blade has excellent corrosion resistance, low cost, light weight and good wear resistance. The smooth surface of HDPE doctor blade can reduce friction when in contact with equipment. It is often used for soft rubber rollers and polyurethane rollers in the wet section of paper making machines.

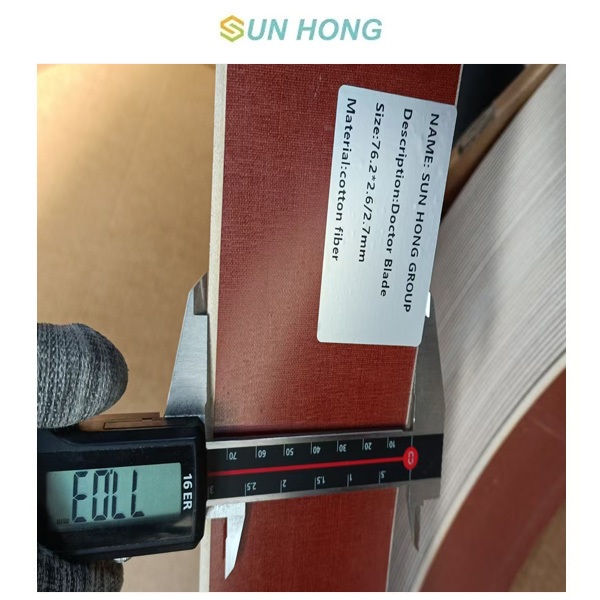

Cotton Fiber Doctor Blade

Cotton fiber doctor blade is compositely processed with natural cotton fiber as the base material. It is mainly used to clean the debris on the surface of the roller in the wet end of the paper machine. Because it uses cotton fiber to avoid scratches when cleaning the roller surface, it can effectively extend the service life of the dryer cylinder and rollers.

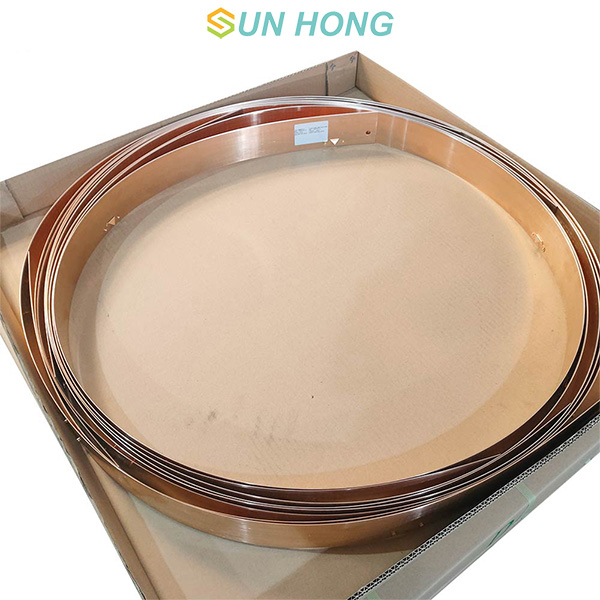

Phosphor Bronze Doctor Blade

Phosphor bronze doctor blade is made of high quality copper alloy. This doctor blade is relatively pliable among metal blades, low friction coefficient and is not easy to damage the dryer cylinder and roller. It has good cleaning effect, especially for cleaning Yankee dryer cylinder, paper roller, calender roller, etc.

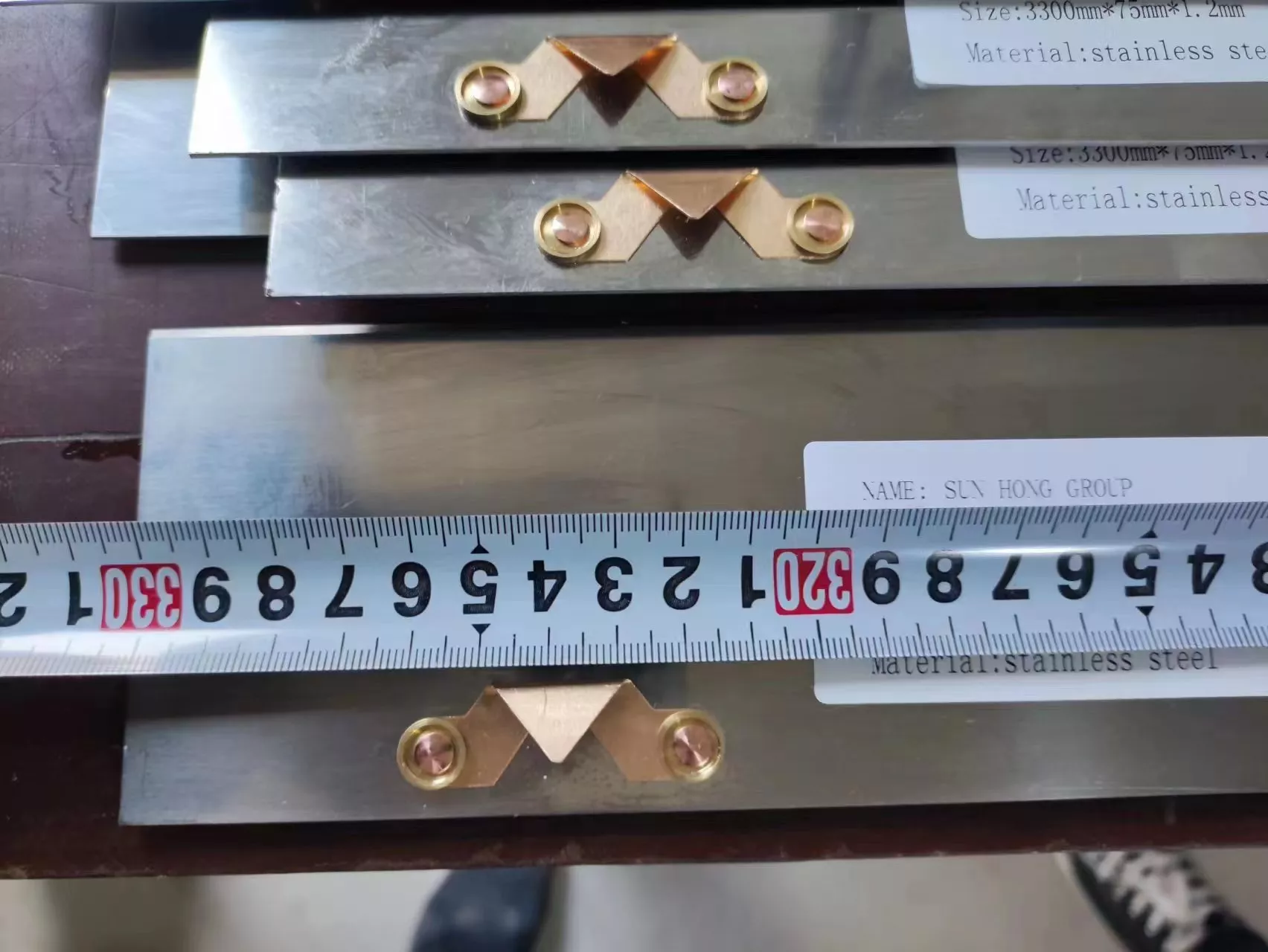

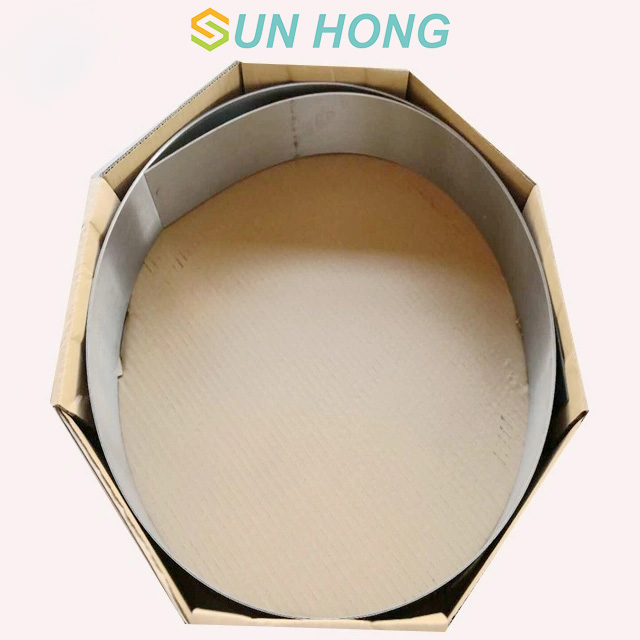

Stainless Steel Doctor Blade

Stainless steel doctor blade is made of 304/316 material, which has good corrosion resistance, wear resistance, stability and strength, and is suitable for the stone roller and hard rubber roller of the pressing section.

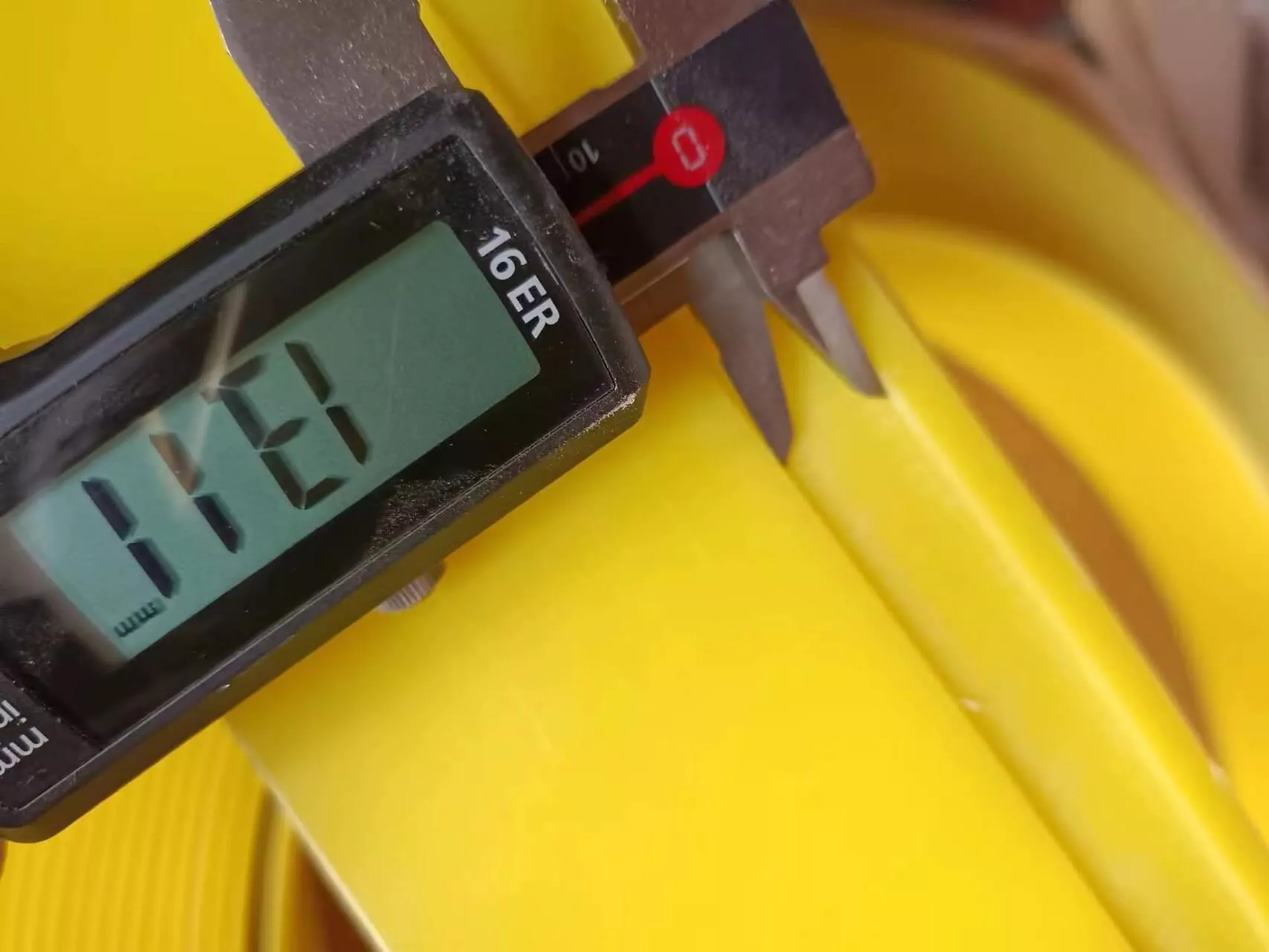

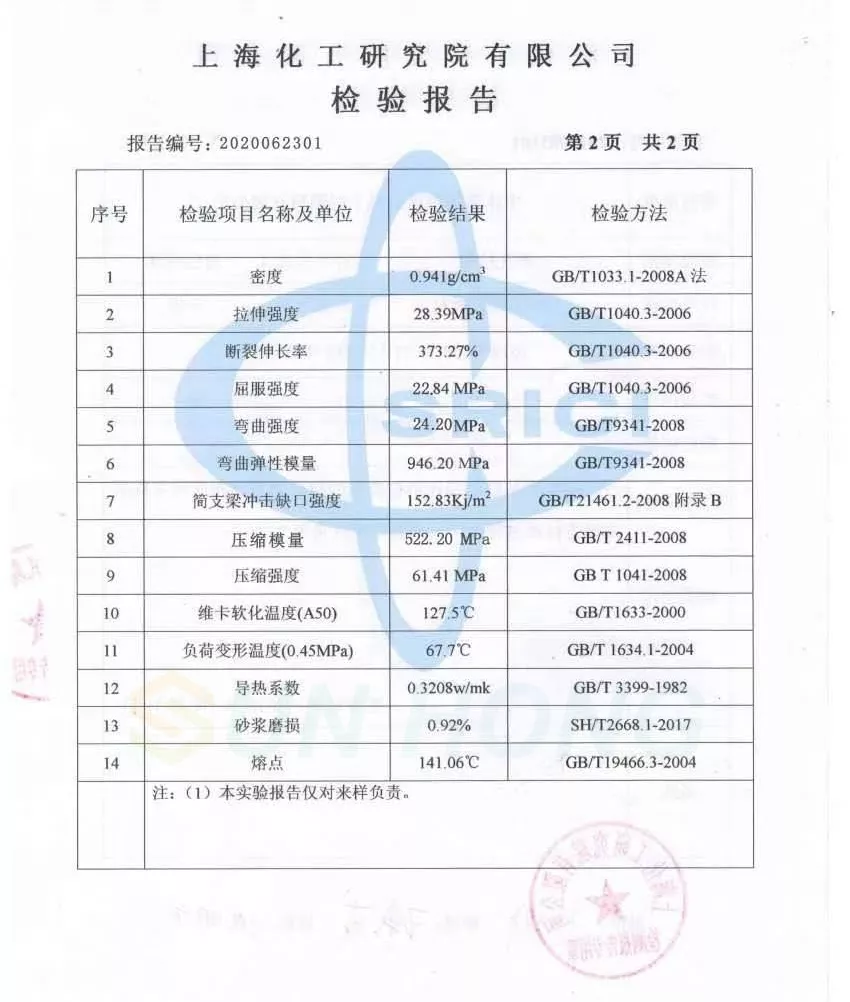

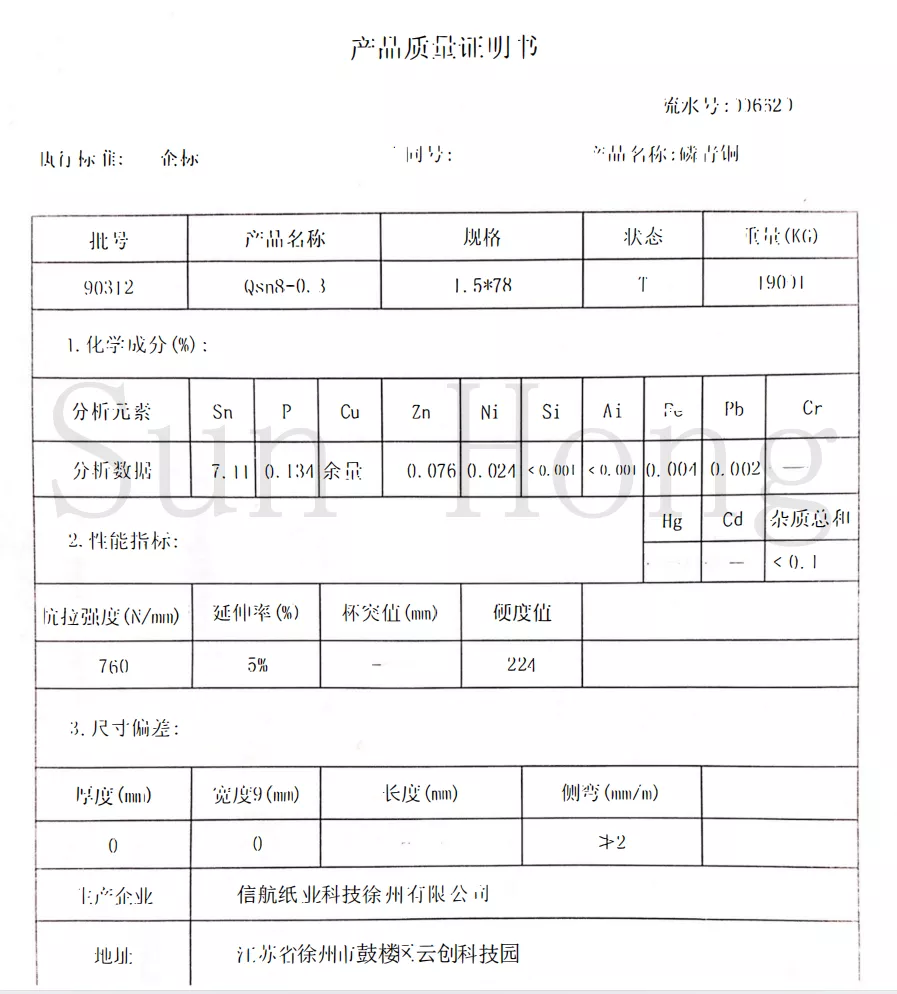

Sun Hong Doctor Blade Quality Inspection

Sun Hong Doctor Blade Export Case

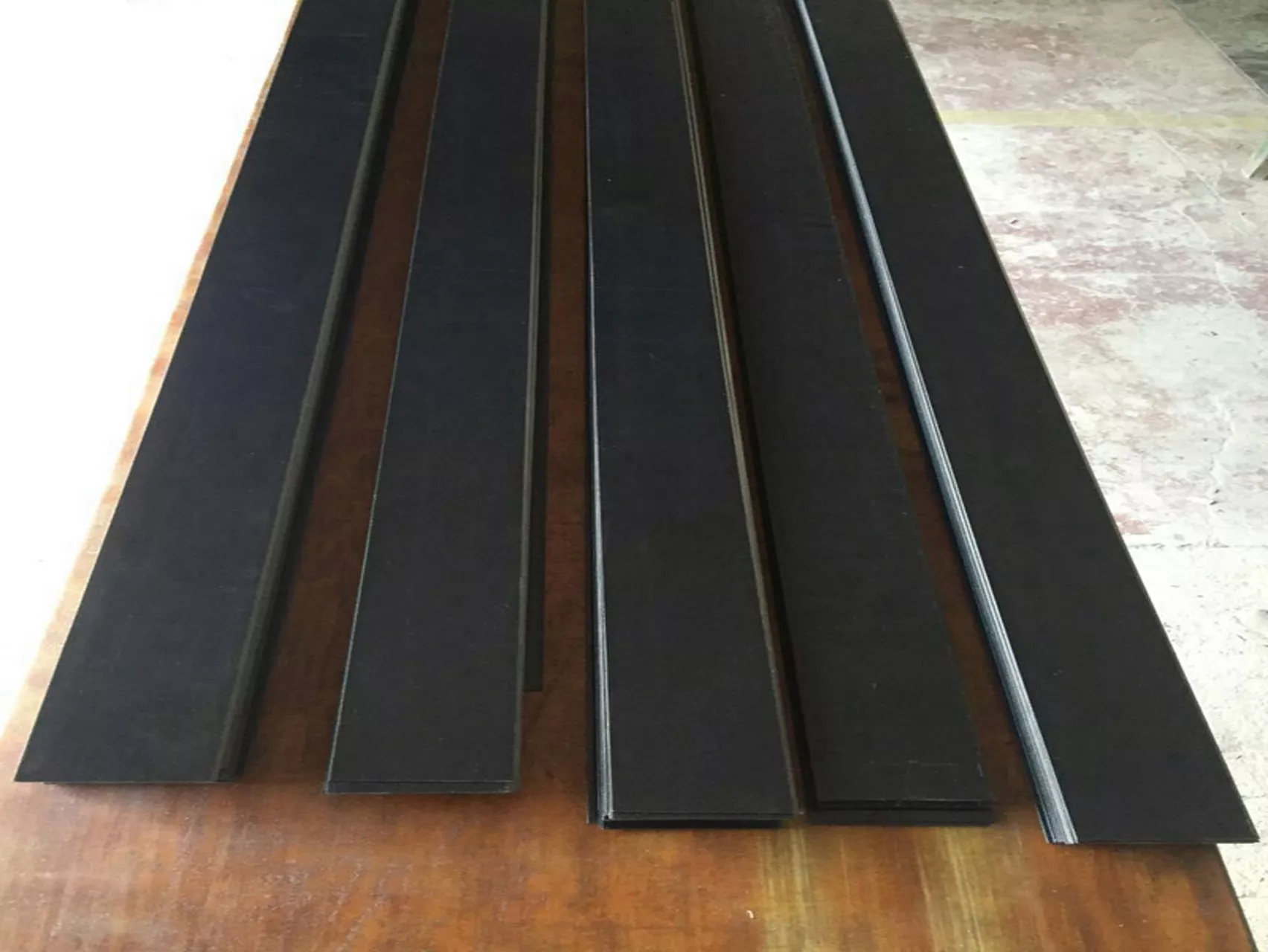

carbon fiber doctor blade finished product display

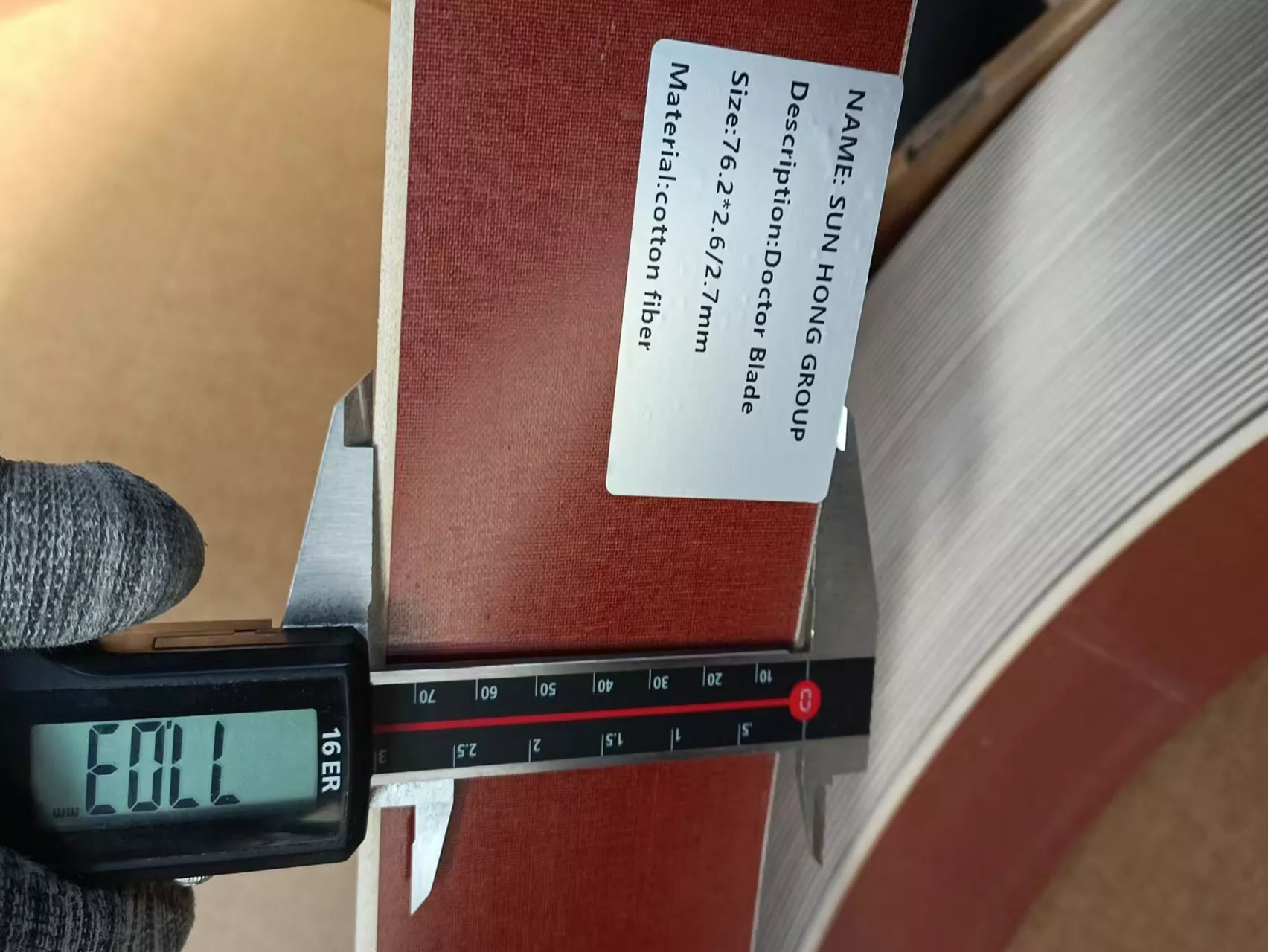

otton fiber doctor blade for paper machin

Paper Machine Doctor Blade FAQ

The Basic Selection Principle of Doctor Blade

(1) Chilled cast iron rollers cannot use stainless steel doctor blade.

(2) Chrome plated rollers cannot use bronze blades.

(3) Steel rollers cannot use steel blade. (stainless steel doctor blade)

(4) Copper rollers cannot use Monel blades.

(5) Composite rubber rollers cannot use metal doctor blades.

(6) Before increasing the doctor blade pressure, replace the doctor blade with a new one.

How to Prevent Excessive Wear of Doctor Blades?

(1) According to professional advice, select appropriate doctor blade materials, loading angles, and loading pressures for different roller surfaces. (2) Regularly check doctor blade system settings and doctor blade wear. (3) Replace doctor blades in a timely manner and do not continue to use excessively worn doctor blades by increasing loading pressure. (4) Pay attention to the spraying and lubrication of the wet section doctor blade.

How to Solve Local Wear and Tear on the Doctor Blade?

It may be caused by static electricity or damage to the clamping frame.

Solution:

The clamping frame needs to be replaced or repaired, and a synthetic doctor blade needs to be used.

Why Doctor Blade is worn corresponding to The Pulp Edge?

This phenomenon is typical wear of the press roller doctor blade, which is caused by excessive lubrication of the roller surface without pulp.

Solution:

It is necessary to open grooves at both ends of the doctor blade to release pressure. (For the doctor blade used for the calendering roll, the doctor blade will also wear due to overheating of the roller surface, which can also be solved by opening grooves at both ends of the doctor blade to release pressure)

Why The Edge of Doctor Blade is Unevenly Worn?

It may be caused by poor roller surface, vibration, or clamping frame. Solution:

Use an abrasive scraper to repair the roller surface, repair the scraper clamp, and eliminate vibration.
