How to Choose The Right Doctor Blade for Your Production Line?
Selecting the appropriate doctor blade is a crucial decision for paper machines, coating lines, and other industrial production lines.
A well-chosen blade can enhance product quality, reduce equipment downtime, cut maintenance expenses, and prolong the life of rollers and related components. On the other hand, using an unsuitable blade can result in issues such as streaking, uneven coatings, irregular wear, vibrations, and frequent replacements.
So, how can you pick the right doctor blade for your production line?Here are the key considerations you should take into account.

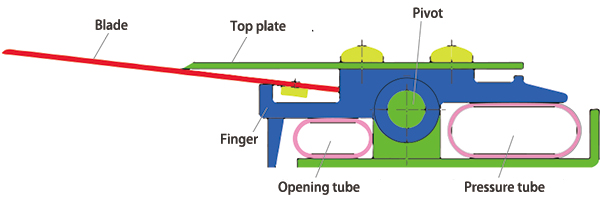

Choosing Doctor Blade Based on Application Position
-- Coating Blade: These are made from highly elastic blue-tempered steel, with a tough coating that resists bending and chipping, and a smooth, dense tip for precise application.
-- Forming Section Blades: Carbon fiber doctor blades are recommended for use with metal rolls.
HDPE, carbon fiber, or glass fiber doctor blades are ideal for rubber coated rolls. HDPE doctor blades are often preferred for guide rolls and tension rolls, with a recommended cleaning angle of 20° to 25°.
-- Vacuum Couch & Press Section: Vacuum couch rolls typically use two blades with opposite edges to facilitate negative pressure cleaning and residue removal.
HDPE blades are used for rubber press rolls, while 40% , 60 % and 100% carbon fiber blades are suitable for stone rolls.
-- Dryer & Calender Section: blade used on dryer cylinder is to remove sticky substances from cylinder surfaces.
40% carbon fiber blades are typically used in pre-dryers, while epoxy resin blades are used in other areas. High-carbon fiber content blades are effective for both hard and soft calendering when the angle and pressure are properly controlled.
Select Based on the Doctor Blade Material

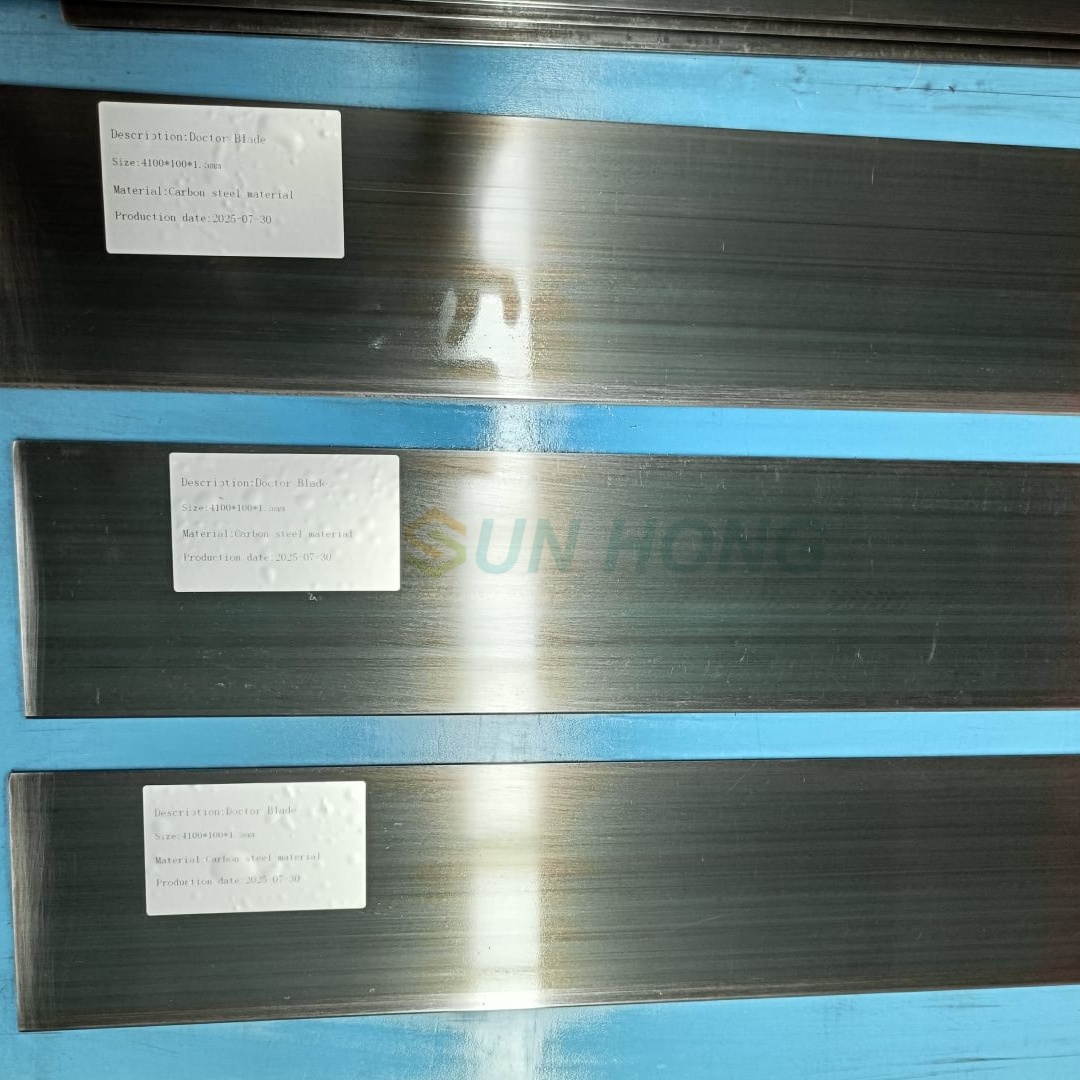

| Stainless Steel / Carbon Steel Doctor BladeThese blades offer high rigidity, effective cleaning, resistance to high temperatures and pressures, and are widely applicable.However, they may damage roll surfaces if not used correctly. |

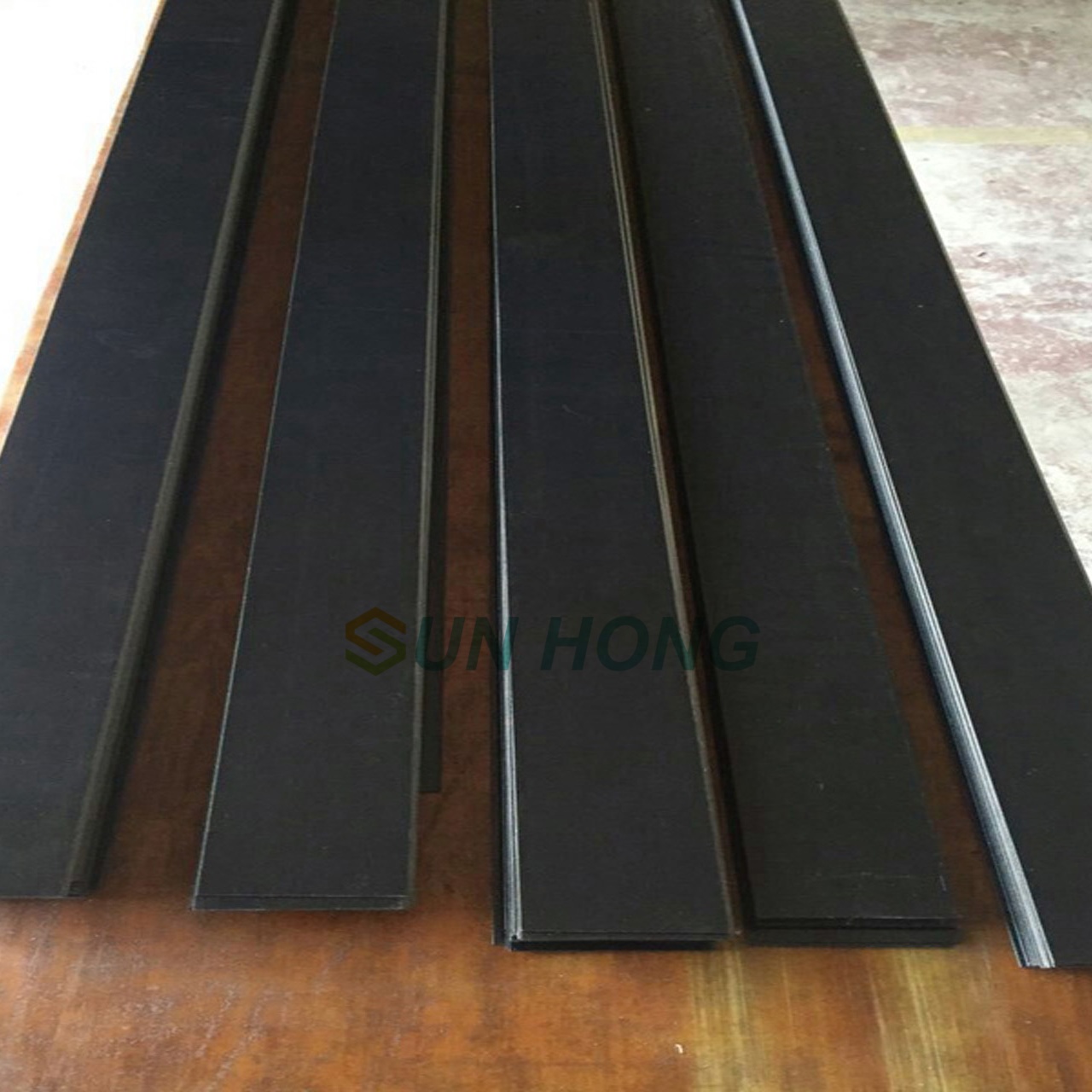

| Carbon Fiber Doctor BladeThese blades are lightweight, ultra-strong, highly wear-resistant, have long service life, low vibration levels, and offer high precision.They are designed for high-speed paper machines and advanced coating processes. |

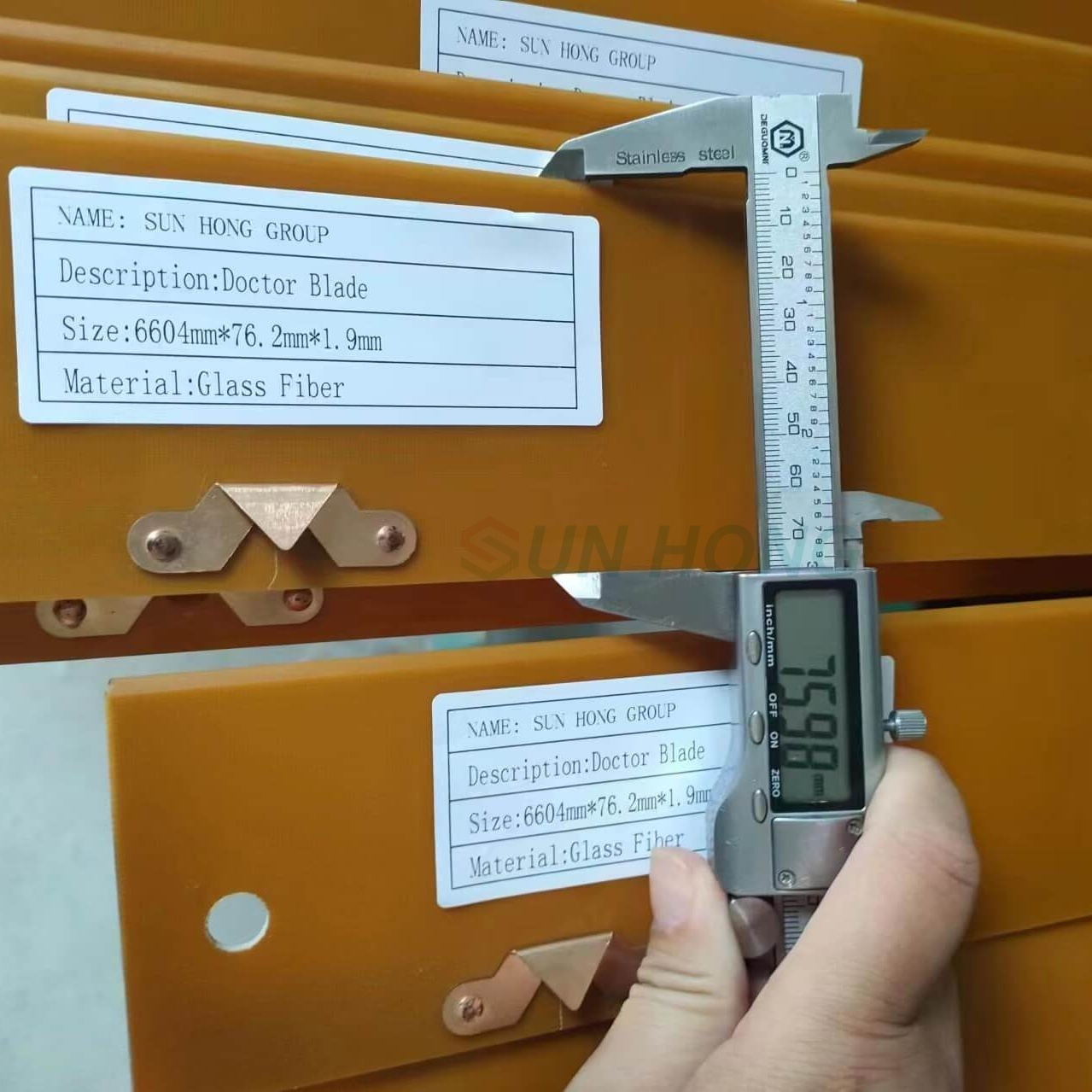

| Epoxy Resin and Glass Fiber Doctor BladeThese blades are strong, tough, and resistant to wear and corrosion.They are kind to rollers and are suitable for cleaning and light coating on medium and low-speed paper machines. |

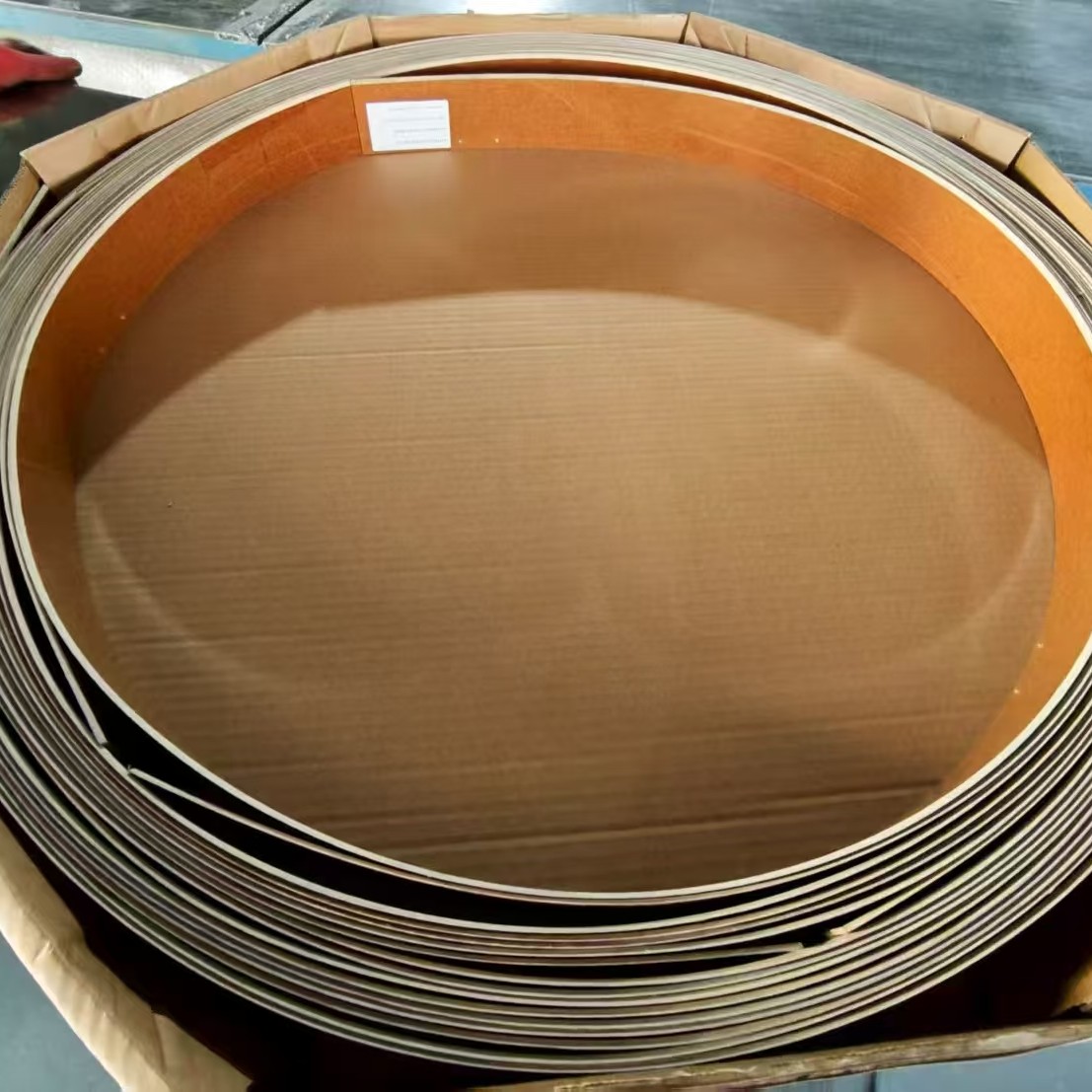

| Cotton Fiber/Phenolic Resin Doctor BladeThese blades have a soft texture that protects cylinder surfaces from scratches and have good water and oil absorption properties.They are mainly used for low-speed, light-load cleaning applications. These blades are hard, dimensionally stable, resistant to high temperatures and wear, and do not damage rolls.They are used in medium-speed paper machines, coating, and sizing operations. |

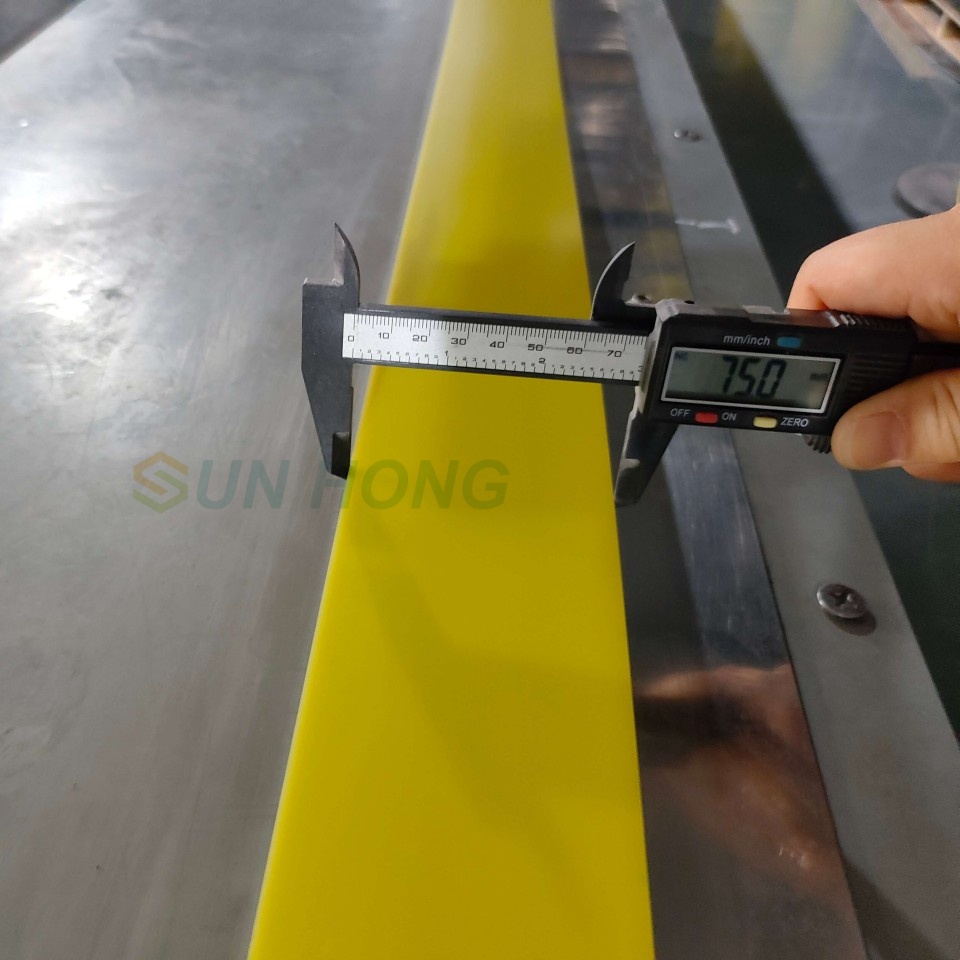

| HDPE Doctor BladeThese blades are tough, impact-resistant, corrosion-resistant, and rust-free, making them cost-effective and ideal for low-speed dust removal, sewage, and pulp cleaning. |

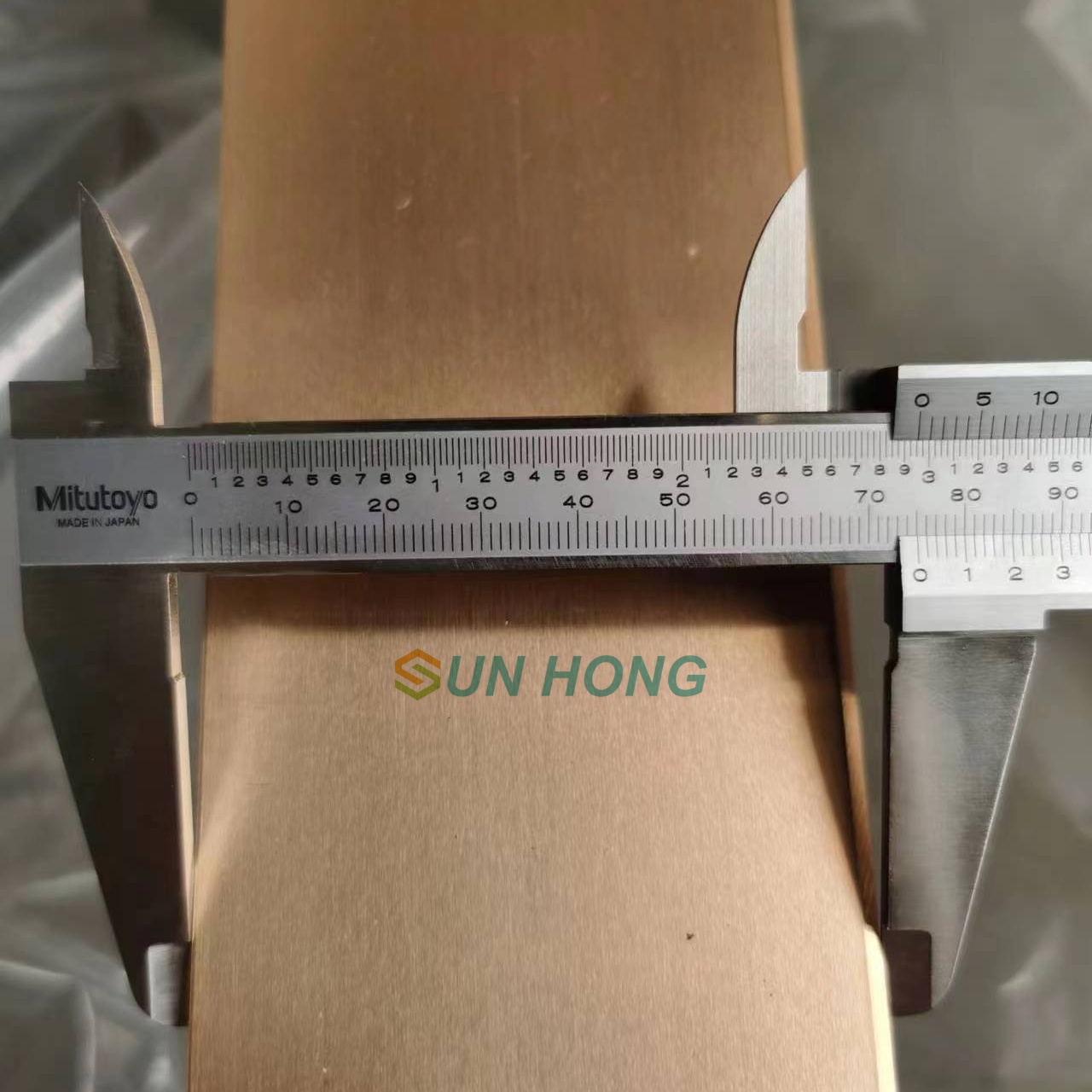

| Phosphor Bronze Doctor BladeThese blades have excellent thermal conductivity, high temperature and wear resistance, self-lubricating properties, and are low vibration, making them suitable for high-speed paper machines and high-pressure dryer cylinders. |
When You Choose Doctor Blade What Matters Need to Be Considered ?
Consider Hardness and Flexibility
-- A blade with higher hardness tends to last longer but may be less flexible.
-- A more flexible blade can protect the rollers but may deform under high pressure.
-- Finding a good balance between hardness and flexibility ensures stable performance.
Check Doctor Blade Thickness, Width, and Length Dimensions
-- The dimensions of the blade must match your blade holder.
-- Incorrect thickness can lead to poor sealing or vibration issues.
-- An incorrect width may result in incomplete cleaning or doctor blade edge wear.
-- Always provide precise dimensions or original samples for custom blade creation.
Evaluate the Working Environment
-- The following factors directly affect the lifespan of doctor blade:
-- Working speed: High-speed environments require more wear-resistant materials.
-- Temperature: High temperatures can soften or deform low-quality blades.
-- Corrosiveness: Chemical coatings may require corrosion-resistant materials.
-- Impurities in pulp: Abrasive conditions necessitate durable blades.
Why Choose Sun Hong Doctor Blade ?
-- A dependable supplier offers:
-- Strict material inspection
-- Consistent processing precision
-- Ability to provide customized solutions
-- Professional after-sales support
-- High-quality doctor blades can significantly reduce total costs compared to cheaper alternatives.
Choosing the right doctor blade is not just about price—it's about performance, stability, and cost efficiency.By considering your equipment type, material selection, dimensions, working environment, and supplier reliability, you can find the most suitable doctor blade for your paper machine.
A suitable doctor blade is crucial for ensuring the smooth operation of a paper machine and the quality of the finished paper. However, simply understanding the material and selection of doctor blades is not enough. Sun Hong can provide you with in-depth insights into the application of paper machine doctor blade, installation and maintenance, causes of wear and solutions, ensuring their longevity and enhancing your production experience. If you still have any questions about doctor blade, please feel free to contact our technical team for expert advice and customized solutions.
