Do You Know The Application of Spray Nozzle in Paper Industry?

Spray Nozzle Applied on Paper Machine

With the special requirements of papermaking technology, the application of spray nozzles in the papermaking industry is becoming more and more widespread, and industrial nozzles are everywhere from the headbox, wire section , press section, dryer section, and winding section. The effectiveness of spray nozzles directly affects the quality of paper, so although spray nozzles are small, they are important components that cannot be ignored in paper mills.

1. Tank Cleaning Nozzle

The tank cleaning nozzle can be used for tank cleaning in paper mills, which has a fast cleaning speed and low operating cost.

2. Paper Edge Trimming Nozzle

The edge trimming nozzle mainly uses high-pressure needle shaped nozzles, which can form a straight needle shaped liquid column flow under different pressure conditions and can withstand pressures up to 140 bar. The nozzle material includes 316 stainless steel and high alumina ceramics.

3.Wire and Felt Cleaning Nozzle

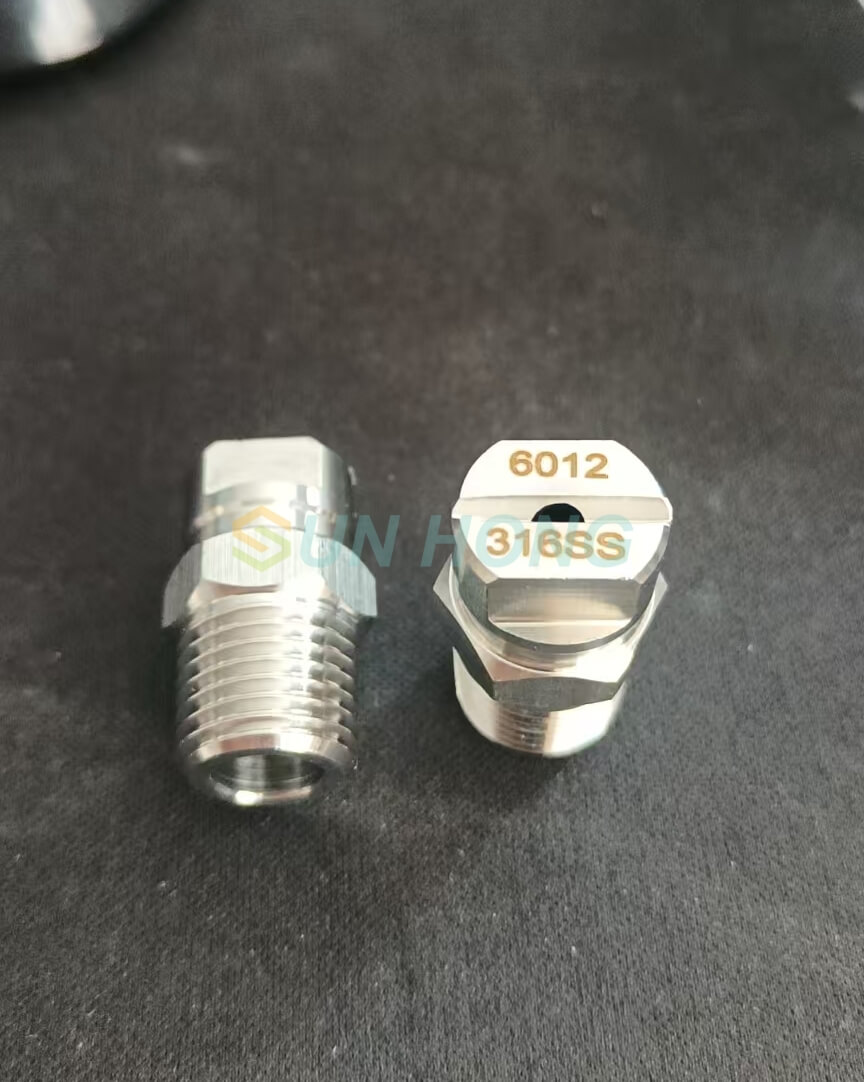

Felt cleaning in the press section, blind hole roll cleaning, groove roll cleaning, etc. Fan shaped nozzles, high-pressure needle shaped nozzles, self-cleaning fan shaped nozzles, and so on are generally used for cleaning.

4. Paper Coating Spray

The paper surface coating spray generally uses water mist nozzle and air atomization nozzle. Starch is one of the most important raw materials in papermaking, and it can improve the wet end stability of paper during the papermaking process. Starch coating can enhance the strength and durability of paper, improve its gloss and smoothness, enhance its printing performance, improve its moisture resistance, and increase its density and thickness. The uniformity of starch coating is very important. The starch solution can be evenly atomized through the nozzle by spray. Hollow cone nozzle has excellent atomization performance and can be used for starch coating.

5. Pulp Defoaming

Generally, hollow cone nozzle and spiral nozzle are used to remove foam from pulp. In the whole process of pulp and paper industry, a series of operations after steaming, boiling and discharging, such as washing, screening, bleaching, concentration, pulp supply system, surface sizing, coating, black liquor recovery, etc., are all affected to varying degrees by foam, which interferes with normal production, reduces the quality of paper, and will make production impossible in serious cases. The nozzle can evenly spray chemical defoamers on the surface of the pulp, allowing them to quickly diffuse and adsorb onto the surface of the bubbles, thereby changing the surface tension and stability of the bubbles, causing them to quickly rupture and dissipate, thus achieving the effect of defoaming. In the whole process of pulp and paper industry, a series of operations after steaming, boiling and discharging, such as washing, screening, bleaching, concentration, pulp supply system, surface sizing, coating, black liquor recovery, etc., are all affected to varying degrees by foam, which interferes with normal production, reduces the quality of paper, and will make production impossible in serious cases. The nozzle can evenly spray chemical defoamers on the surface of the slurry, allowing them to quickly diffuse and adsorb onto the surface of the bubbles, thereby changing the surface tension and stability of the bubbles, causing them to quickly rupture and dissipate, thus achieving the effect of defoaming. Solid cone nozzle, spiral nozzle, etc. are usually used.
